HDMI 2.1 FEC Transmitter (Tx)

The HDMI Forward Error Correction (FEC) Transmitter IP Core implements Reed-Solomon FEC and symbol mapping/interleaving as specif…

Overview

The HDMI Forward Error Correction (FEC) Transmitter IP Core implements Reed-Solomon FEC and symbol mapping/interleaving as specified by the HDMI 2.1 specification.

Forward Error Correction is required to ensure glitch-free operation in Fix Rate Lane (FRL) mode, a packet mode introduced in HDMI 2.1. FRL allows for the use of Display Stream Compression (DSC) bitstream transport.

Solution for GPUs, Desktop and Laptop PCs, UHD Set-top Boxes, Pro AV, HDMI 2.1 Accessories

Key features

  • HDMI 2.1 compliant
  • Reed-Solomon RS (255,251) FEC, 8-bit symbols
  • Supports 3-lane and 4-lane operation
  • Error counters included (Rx only)

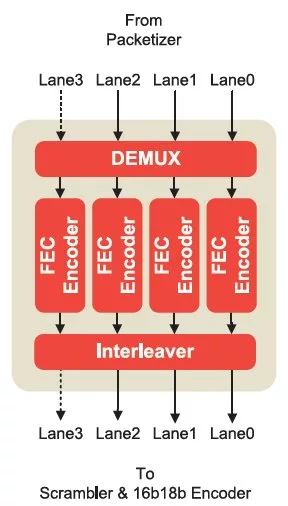

Block Diagram

FEC-HDMI2.1-TX block diagram

Applications

  • GPUs
  • Desktops & laptops
  • UHD TVs & set-top boxes
  • Professional video equipment

What’s Included?

  • Encrypted RTL source code IP core
  • Functional and structural coverage reports
  • Comprehensive integration guide

Specifications

Identity

Part Number
FEC-HDMI2.1-TX
Vendor
Rambus, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Rambus, Inc.
HQ: USA
