The HDMI 2.1 RX Controller and PHY IP solutions, compliant with the HDMI 2.1 specification, provide the necessary logic to implement and verify designs for various HDMI-based applications. The silicon-proven HDMI 2.1 IP provides quality digital video and audio transmission with up to 48Gbps aggregate bandwidth for uncompressed 8K resolution at 60Hz refresh rate. It supports the required features of HDMI 2.1 including dynamic HDR and enhanced audio return channel (eARC) and more, ensuring higher video quality and most advanced audio formats.

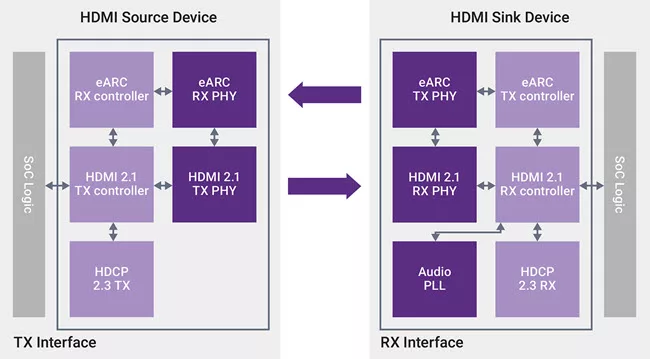

The power- and area-optimized HDMI 2.1 IP solutions encompass a suite of configurable digital controllers, High-Bandwidth Digital Content Protection (HDCP) embedded security modules (ESMs), high-speed mixed-signal PHYs, PLLs, verification IP, IP Prototyping Kits, Linux software drivers, and IP subsystems. The highly efficient HDCP 2.3 on HDMI ESMs are designed to protect premium audio-visual content against unauthorized copying, interception, and tampering while meeting stringent security specification requirements.
Having all necessary design blocks for the HDMI subsystem enables system-on-chip (SoC) designers to lower integration risk and accelerate time-to-market.
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 12nm | FFC | — |
HDMI 2.1 eARC RX PHY in TSMC 12FFC 1.8V, North/South Poly Orientation is a HDMI IP core from Synopsys, Inc. listed on Semi IP Hub. It is listed with support for tsmc.
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this HDMI IP.
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
