Synopsys, Inc.
Category:
HDMI
HDMI 2.0 TX PHY 6Gbps in TSMC22ULP 1.8V, North/South Poly Orientation
The HDMI 2.0 TX IP solutions provide the necessary logic to implement and verify designs for various HDMI-based applications.
Overview
The HDMI 2.0 TX IP solutions provide the necessary logic to implement and verify designs for various HDMI-based applications. The HDMI TX IP solutions are shipping in volume and have gone through extensive in-house and third-party interoperability testing, enabling SoC designers to lower integration risk and accelerate time-to-market.
The complete HDMI IP solution consists of digital controllers, High-Bandwidth Digital Content (HDCP) embedded security modules (ESMs), PHYs and verification IP as well as IP Prototyping Kits with associated software and drivers. The IP solutions are HDMI 2.0 and HDCP 2.3 certified with embedded security modules, ensuring the highest content protection over the HDMI 2.0 interface or ultra-high-definition multimedia SoCs.
Key features
- Support for key HDMI 2.0 features such as 4Kx2K resolution at 60 Hz frame rate, YCbCr 4:2:0 pixel encoding format, TMDS scrambling, High Dynamic Range (HDR), CEC 2.0, and 18.0 Gbps aggregate bandwidth
- Compliant with HDMI 2.0 and HDCP 2.3, 1.2 specification
- Optimized for low power and small area
- Timing hardened blocks enable simplified placement and design closure
- High-performance TX PHY IP enables long cable lengths
- Configurable controller architecture optimized for power, performance, and area
Block Diagram

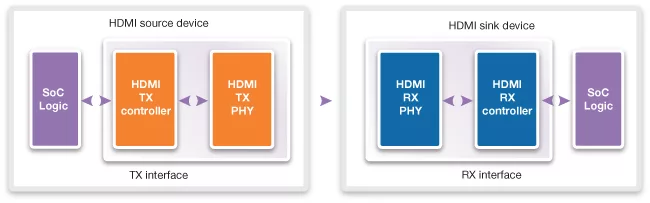

dwc_hdmi20_tx_ns_6gbps_tsmc_22ulp18 block diagram
