Vendor: Nano Silicon Category: HDMI

HDMI 2.0 Transmitter

Contact Provider Request Datasheet
SMIC 65nm LL View all specifications

Key features

  • Compliant with HDMI 2.0 specification and HDCP 1.4 Specification compliant
  • Supports high-definition video with up to 4K resolution
  • Support for up to 48-bit Deep Color
  • Supports industry-standard S/PDIF for digital audio using IEC 60958 2-channel PCM, and compressed (encoded) audio data (DTS, AC3, MPEG Audio) using IEC 61937 format
  • Support for I2S interface for multi-channel audio
  • Capable of carrying all InfoFrame including AVI, Audio, MPEC, SPD and others
  • Integrated High-Bandwidth Content Protection (HDCP) 1.4 for both video and audio
  • Serial Bus Slave Programming Interface
  • Receiver detection: supports Hot Plug Detection
  • DVI 1.0 compliant output
  • SMIC 65 nm and SMIC 130 nm processes

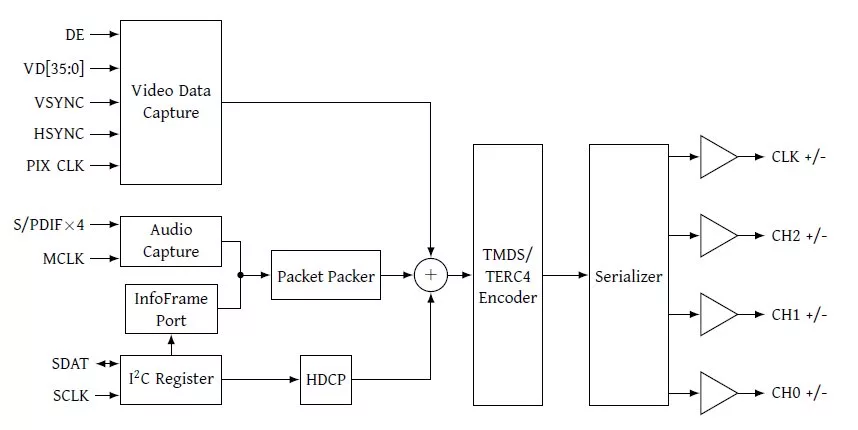

Block Diagram

HDMI_TX block diagram

Applications

  • Set-top boxes
  • HD-DVD/Blu-Ray disc players

Silicon Options

Foundry Node Process Maturity
SMIC 65nm LL —

Specifications

Identity

Part Number
HDMI_TX
Vendor
Nano Silicon
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Nano Silicon
HQ: Australia
Contact Nano Silicon
