Vendor: Nano Silicon Category: HDMI

HDMI 2.0 Receiver with MHL 2.0

Contact Provider Request Datasheet
Samsung 28nm View all specifications

Key features

  • HDMI 2.0 Specification, MHL 2.0 Specification and HDCP 1.4 Specification compliant
  • 4 HDMI input ports, of which one is MHL compliant
  • Deep color support – up to 48 bits
  • Selectable audio interface (S/PDIF or I2S) for digital audio output
  • 3D audio output support – up to 32 channels
  • Full 3D HD video support
  • Embedded CEC PHY
  • Audio Return Channel support
  • Integrated Fractional PLL for Audio Clock Regeneration
  • Video resolutions – up to 4k2k at 60 Hz
  • RGB YCbCr 4:4:4/4:2:2/4:2:0 video format support
  • APB interface for MCU access support
  • Power-down mode support

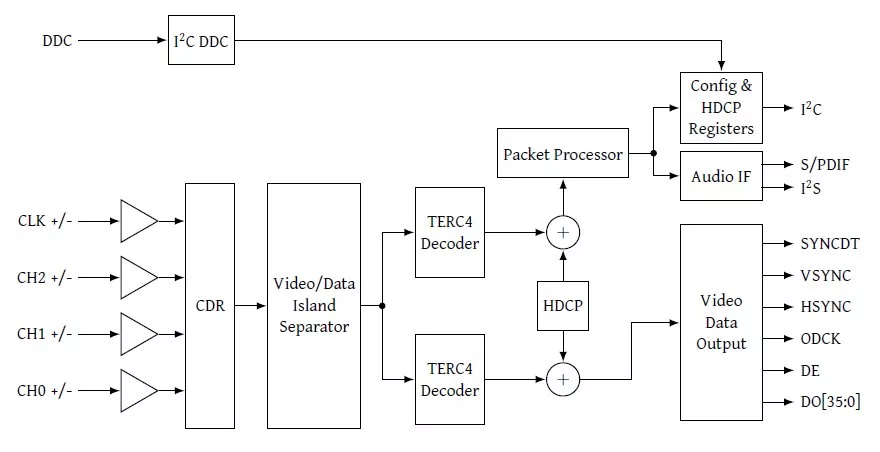

Block Diagram

HDMI_RX_MHL_2.0 block diagram

Applications

  • LCD Displays
  • HDTV
  • Projectors

Silicon Options

Foundry Node Process Maturity
Samsung 28nm 28nm 280 nm —

Specifications

Identity

Part Number
HDMI_RX_MHL_2.0
Vendor
Nano Silicon
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Nano Silicon
HQ: Australia
Contact Nano Silicon
