Flexible 200kHz-20MHz Oscillator - Customizable frequency, Low Power - TSMC 40nm

This macro-cell is a flexible general purpose oscillator core designed for TSMC 40nm CRN40LP CMOS technology.

TSMC 40nm G Silicon Proven View all specifications

Overview

This macro-cell is a flexible general purpose oscillator core designed for TSMC 40nm CRN40LP CMOS technology. This IP can be customized upon request.

The customized IP oscillates at a specific frequency selected between 200kHz and 20MHz, and consumes a proportional quiescent current (typ. 1.8μA to 13μA). An external 1.3μA bias current is required for proper operation, this can be implemented with ChipusCM1218hl voltage & current reference IP. A 4-bit digital bus allows frequency calibration against process variations with +/- 2.5% precision.

The core is easily retargeted to any other CMOS technology due to its MOSFET-only oscillator architecture.

Key features

  • Supply voltage from 1.0–1.2V
  • Oscillating Frequency 200kHz-20MHz
  • Load capacitance: < 100fF
  • Precision ±2.5% (after trimming)
  • 4-bit process trimming
  • Low current (typ. 2–13 uA@1.1V)
  • Indicative area: 0.0022mm2

Block Diagram

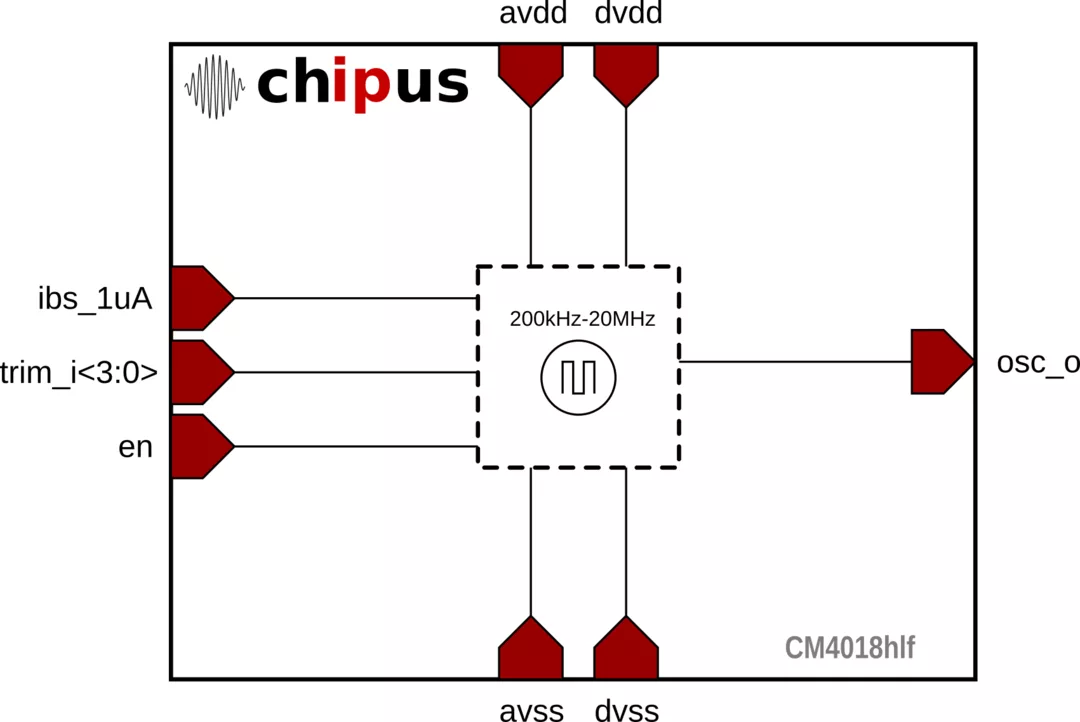

CM4018hlf block diagram

Applications

  • Microcontrollers
  • Battery powered equipment
  • General Purpose ICs

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Silicon Options

Foundry Node Process Maturity
TSMC 40nm G Silicon Proven

Specifications

Identity

Part Number
CM4018hlf
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download
