Embedded TCAM IP

TCAM can search for data that matches the input in one cycle from all the information stored in the memory.If there are multiple …

Contact Provider Request Datasheet
SMIC +1 7nm +4 FF+LL +5 Available on request View all specifications

Overview

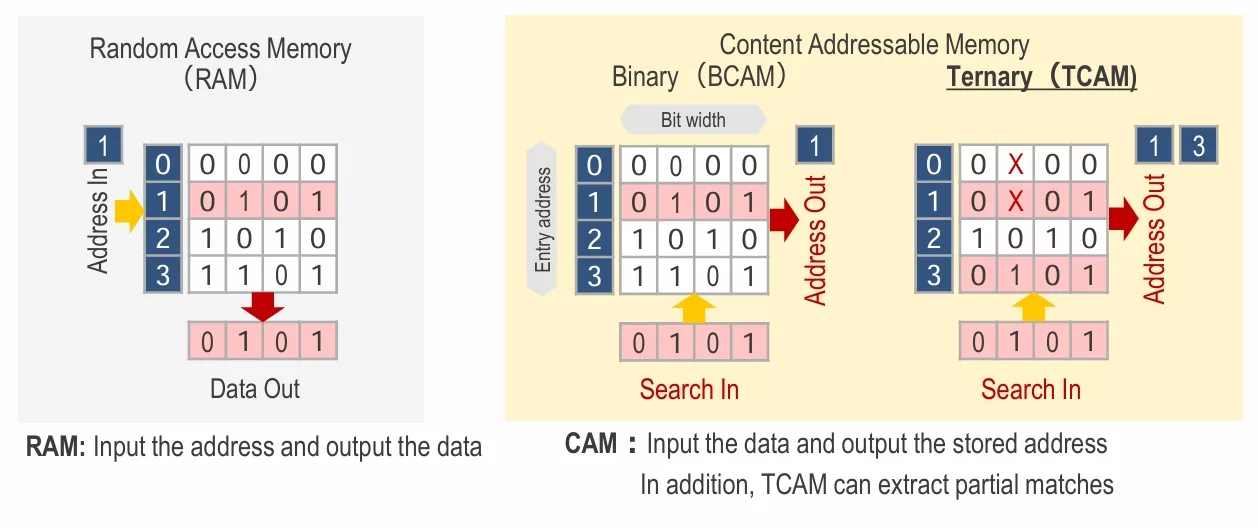

TCAM has traditionally been adopted in network hub equipment and is often used for high-speed IP address searches. RAM, which is a typical memory, specifies an address and outputs the data, but TCAM inputs data and outputs the matching address.

KEY FEATURES OF TCAM

  • TCAM searches for data that matches the input value in one cycle from all information stored in the memory.
  • If there are multiple matching data, find all of them Also, by adding a priority encoder, it is possible to select one from multiple matching data.
  • The search key input (Search In) hascapability with a bitwise mask function to support various searches.

Key features

  • Designed as small-capacity TCAM hard macro: RTL Wrapper provided by Renesas supports Entry Address/Bit width beyond the hardware macro support range.
  • Search results for each address are output directly from the hard macro: Sorting of search results is realized by adding a priority encoder soft macro
  • Efficient search with Valid Bit control function: Valid Bit that indicates whether the search target is valid or invalid provided for each address omits the search for areas in which data is not stored. Power consumption is reduced because search operations are not performed with invalid addresses.
  • Improved user convenience with Valid Bit Reset function: Function to initialize Valid Bit in one cycle and set all addresses to invalid for Simplifies startup sequence at power-on.
  • Change search key length by Search Mask function: In cases where the search keyword is long, the length of the search key can be changed by partially masking it. It can be specified for each bit.
  • Pre-Search function (supported N7 only) saves power: Power consumption is reduced by searching a part of the key first and then searching the remaining part only if it matches.

Block Diagram

Click to open fullscreen
1 / 2
Keyboard arrows: ← → • Enter: fullscreen • Esc: close

Silicon Options

Foundry Node Process Maturity
SMIC 40nm LL Available on request
TSMC 7nm N7 Available on request
TSMC 12nm FFC Available on request
TSMC 16nm FF+LL Available on request
TSMC 16nm FFC Available on request
TSMC 28nm HPC Available on request
TSMC 28nm HPC+ Available on request

Specifications

Identity

Part Number
TCAM
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Renesas
HQ: Japan
Contact Renesas

Learn more about FIFO / CAM IP core
