E-Band Front-End Module 71 GHz to 86 GHz

The WEA7186F55 is a front end for wireless microwave transceivers operating in the E-Band.

Contact Provider Request Datasheet

Overview

The WEA7186F55 is a front end for wireless microwave transceivers operating in the E-Band. Implemented in a ST Micro Silicon Germanium B55 process. The WEA7186F55 integrates a LNA path, a Power Amplifier together with Bias and Gain Control blocks.

Key features

  • Linear-in-dB Analog Gain Control
  • Broadband Gain Flatness
  • Transmit Power Control
  • Programmable Bias
  • 20dBm output power
  • >30dB TPC
  • 30GHz +/- 2dB BW
  • <6dB NF

Block Diagram

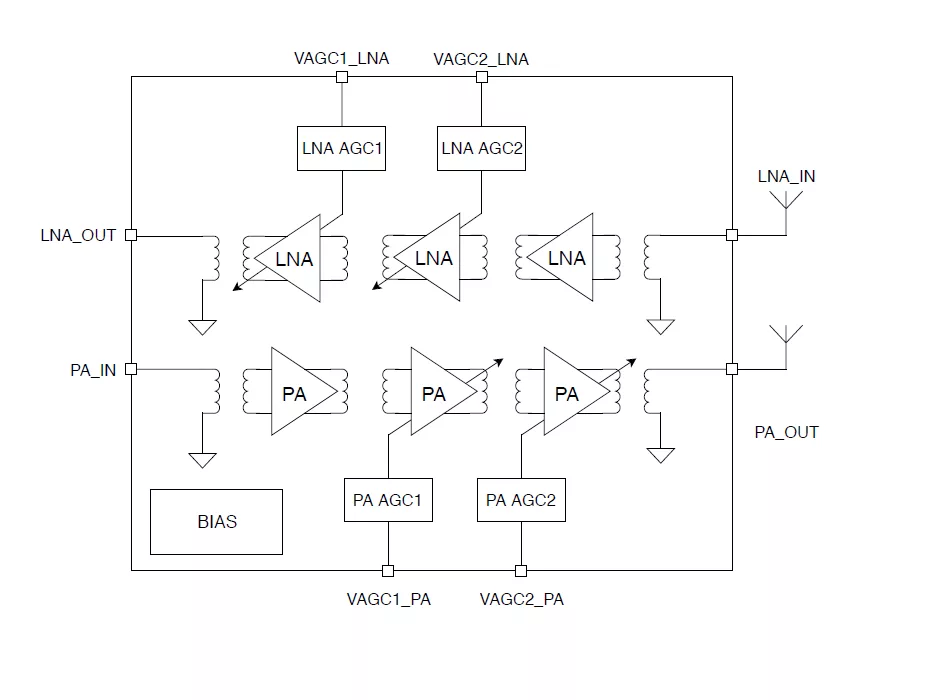

WEA7186F55 block diagram

Specifications

Identity

Part Number
WEA7186F55
Vendor
Weasic Microelectronics
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
