What is DSC Encoder?
DSC Encoder is a VESA DSC IP core from Cybertek Solution Inc. listed on Semi IP Hub.
Vendor:
Cybertek Solution Inc.
Category:
VESA DSC
DSC Encoder
Display Stream Compression (DSC) standard was announced by Video Electronics Standards Association (VESA) in 2014 for video data …
Overview
Display Stream Compression (DSC) standard was announced by Video Electronics Standards Association (VESA) in 2014 for video data compression and has been also adopted into the VESA's eDP v1.4 and the MIPI DSI standard.
Compliant with the VESA DSC 1.2a and 1.2b standards, CYBDSC2e
IP core supports various coding schemes (MMAP, BP, MPP, ICH) as well as color formats in YCbCr 4:4:4, 4:2:2, 4:2:0 and RGB. It transfers more pixel data over display links to save memory size in embedded frame buffers in display driver ICs and performs visually lossless compression, low gate count and latency for ultra-high definition display applications. It can be fastly and easily integrated into ASIC and FPGA applications for 4K / UHD TV, DisplayPort 1.4, USB Type-C device and AR / VR product.
CYB-DSC2e is available now for display designs with high performance but low risk and cost.
Compliant with the VESA DSC 1.2a and 1.2b standards, CYBDSC2e
IP core supports various coding schemes (MMAP, BP, MPP, ICH) as well as color formats in YCbCr 4:4:4, 4:2:2, 4:2:0 and RGB. It transfers more pixel data over display links to save memory size in embedded frame buffers in display driver ICs and performs visually lossless compression, low gate count and latency for ultra-high definition display applications. It can be fastly and easily integrated into ASIC and FPGA applications for 4K / UHD TV, DisplayPort 1.4, USB Type-C device and AR / VR product.
CYB-DSC2e is available now for display designs with high performance but low risk and cost.
Key features
- Compliant with the VESA DSC 1.2a and 1.2b standards
- Perform encoding
- Support MMAP, BP, MPP and ICH
- Support YCbCr 4:4:4, 4:2:2, 4:2:0 and RGB
- Support 8/10/12 bits per component
- Support 3 pixels per clock
- Configurable features for gate count, speed or power requirement
- Programmable display resolutions

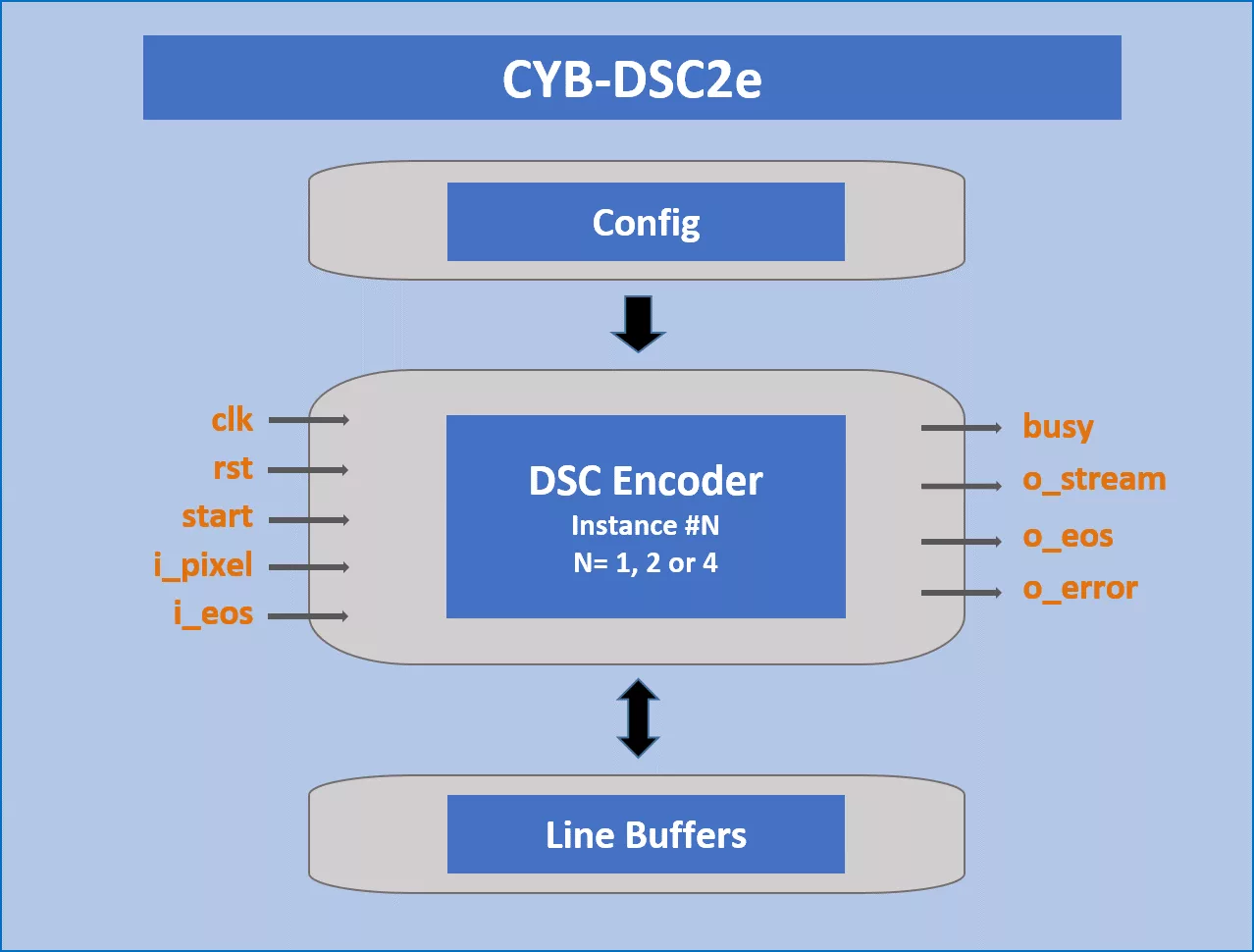

Block Diagram
CYB-DSC2e block diagram
Applications
- 4K / UHD / Digital TV
- Automotive Video
- DisplayPort 1.4 device
- USB Type-C device
- AR / VR product
What’s Included?
- Flexible licensing
- Documentation
- Netlist
- Verilog or VHDL
- Testbench
- Technical support
Specifications
Identity
Part Number
CYB-DSC2e
Vendor
Cybertek Solution Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Taiwan
