Vendor: T2M GmbH Category: LPDDR

DDR4/ LPDDR4/ DDR3L PHY IP - 3200Mbps (Silicon Proven in TSMC 12FFC)

The DDR4/ DDR3L/ LPDDR4 Combo PHY IP provides low latency and enables up to 3200Mbps throughput.

Contact Provider Request Datasheet
Controller + PHY + 1 LPDDR4 TSMC 12nm FFC In Production View all specifications

Overview

The DDR4/ DDR3L/ LPDDR4 Combo PHY IP provides low latency and enables up to 3200Mbps throughput. The PHY IP is compliant with the latest JEDEC standards and is silicon proven in TSMC 12FFC process technology and is designed for ease of integration and faster time-to-market.

Key features

  • Supported DRAM type: DDR3L/DDR4/LPDDR4
  • Maximum controller clock frequency of 400MHz resulting in maximum DRAM data rate of 1866Mbps
  • Interface: SSTL135/POD12/LVSTL
  • Data path width scales in 32-bit increment
  • Four modules for flexible configuration:CA/DQ_X16/DQ_X8/ZQ
  • Programmable output impedance (DS)
  • Programmable on-die termination (ODT)
  • Core power:0.9V, I/O power (VDDQ):1.5V/1.35V/1.2V, RX power:1.8V
  • ESD: 2KV/HBM, 200V/MM, 500V/CDM
  • Support ZQ calibration
  • Support 8 ranks
  • Support write-leveling, CBT
  • Support PHY internal VREFDQ auto decision
  • Per-bit deskew in read and write datapath
  • Silicon Proven in UMC 28HPC+ process technology
  • Supported metal scheme: 1P7M_1C

Block Diagram

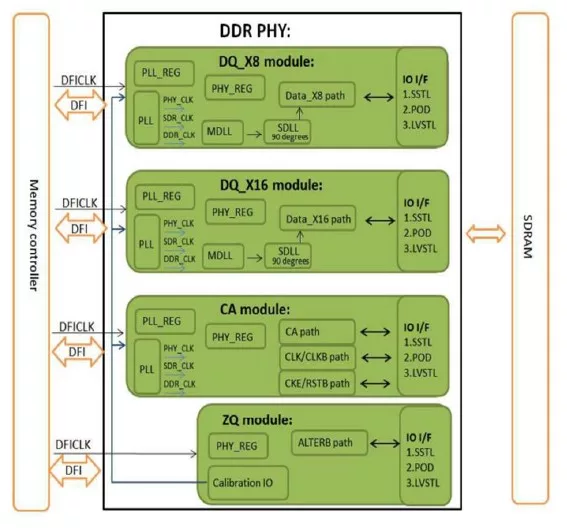

DDR4/ LPDDR4/ DDR3L Combo PHY IP in 12FFC block diagram

What’s Included?

  • Application Note / User Manual
  • Behavior model, and protected RTL codes
  • Protected Post layout netlist and Standard Delay Format (SDF)
  • Frame view (LEF)
  • Metal GDS (GDSII)
  • Test patterns and Test Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 12nm FFC In Production

Specifications

Identity

Part Number
DDR4/ LPDDR4/ DDR3L Combo PHY IP in 12FFC
Vendor
T2M GmbH
Type
Silicon IP
Controller / PHY
Controller + PHY , PHY

Standards & Interfaces

Memory
LPDDR4

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
Contact T2M GmbH
