DDR4/ LPDDR4/ DDR3L PHY IP - 1866Mbps (Silicon Proven in TSMC 28HPC+)

The LPDDR4/ DDR4/ DDR3L Combo PHY IP offers low latency and supports throughput of up to 1866Mbps.

Contact Provider Request Datasheet
Controller + PHY + 1 LPDDR4 TSMC 28nm HPC+ In Production View all specifications

Overview

The LPDDR4/ DDR4/ DDR3L Combo PHY IP offers low latency and supports throughput of up to 1866Mbps. The PHY IP is silicon validated in the TSMC 28HPC+ process technology, complies with the most recent JEDEC requirements, and is created for quick integration and market entry.

Key features

  • Supported DRAM type: DDR3L/DDR4/LPDDR4
  • Maximum controller clock frequency of 400MHz resulting in maximum DRAM data rate of 1866Mbps
  • Interface: SSTL135/POD12/LVSTL
  • Data path width scales in 32-bit increment
  • Four modules for flexible configuration:CA/DQ_X16/DQ_X8/ZQ
  • Programmable output impedance (DS)
  • Programmable on-die termination (ODT)
  • Core power:0.9V, I/O power (VDDQ):1.5V/1.35V/1.2V, RX power:1.8V
  • ESD: 2KV/HBM, 200V/MM, 500V/CDM
  • Support ZQ calibration
  • Support 8 ranks
  • Support write-leveling, CBT
  • Support PHY internal VREFDQ auto decision
  • Per-bit deskew in read and write datapath
  • Silicon Proven in TSMC 28HPC+ process technology
  • Supported metal scheme: 1P7M_1C

Block Diagram

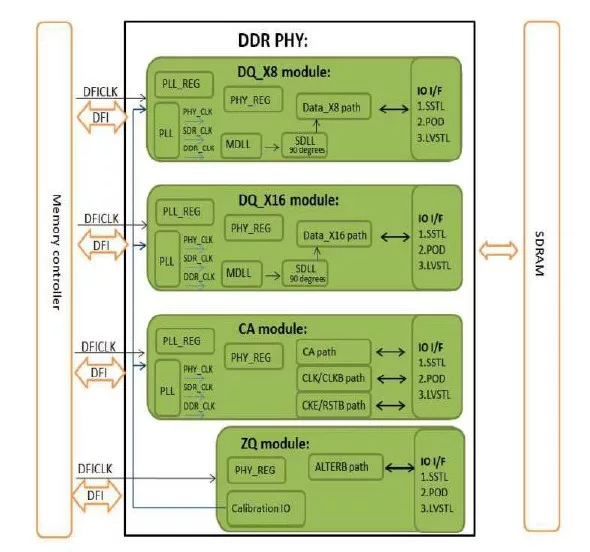

LPDDR4/ DDR4/ DDR3L Combo PHY IP block diagram

What’s Included?

  • Application Note / User Manual
  • Behavior model, and protected RTL codes
  • Protected Post layout netlist and Standard Delay Format (SDF)
  • Frame view (LEF)
  • Metal GDS (GDSII)
  • Test patterns and Test Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ In Production

Specifications

Identity

Part Number
LPDDR4/ DDR4/ DDR3L Combo PHY IP
Vendor
T2M GmbH
Type
Silicon IP
Controller / PHY
Controller + PHY , PHY

Standards & Interfaces

Memory
LPDDR4

Files

Product Sheet Download
