Overview

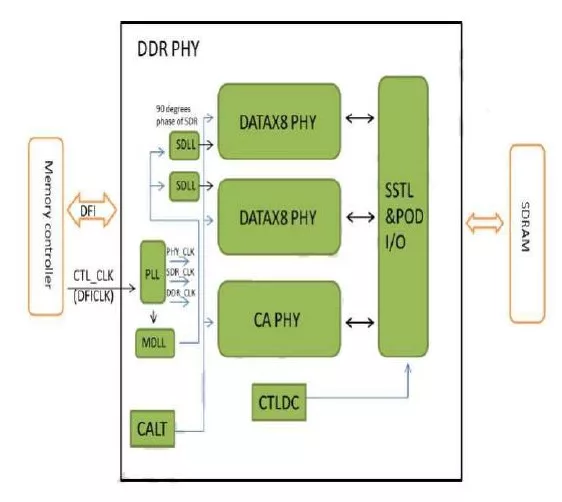

The DDR3L/ DDR4/ LPDDR4 Combo PHY IP offers low latency and supports throughput of up to 1866Mbps. The PHY IP is silicon validated in the UMC 28HPC+ process technology, complies with the most recent JEDEC requirements, is used to control DRAM devices, to access the data stored in these devices, provide SSTL135, POD12 and LVSTL interfaces for DDR3L, DDR4 and LPDDR4.
Learn more about LPDDR IP core
JEDEC has just released the LPDDR6 specification that is expected to take the LPDDR DRAM market to new heights with data transfer speeds that can reach up to 14.4Gbps, which is a 50% improvement over LPDDR5X speeds. LPDDR6 device density can range from 4 GB to 64 GB.
This solution brief highlights how Samsung’s mainstream 8nm process node and LPDDR5X (LP5X) memory together deliver an optimized balance of performance, bandwidth, power efficiency, and cost. The combination enables scalable AI inference across diverse computing environments, from edge devices and AI appliances to emerging inference-focused AI infrastructure, making advanced AI deployment more accessible for startups, fabless innovators, and OEMs alike.
Next-generation automotive systems are advancing beyond the limits of currently available technologies. The addition of advanced driver assistance systems (ADAS) and other advanced features requires greater processing power and increased connectivity throughout the vehicle.
Understand memory-aware ASIC design for AI workloads, from memory hierarchy and dataflow to NoC, DMA, and hardware-software co-design.
As AI workloads continue to diversify, the systems that support them are evolving just as quickly. AI is no longer confined to the hyperscale data center. It is moving to the factory floor, into vehicles, and increasingly to the edge, where power, cost, and form factor constraints can matter just as much as raw performance.
