CPRI Master and Slave
CPRI is a high-speed serial interface for network radio equipment controllers (REC) to receive and provide data to remote Radio E…
Overview
CPRI is a high-speed serial interface for network radio equipment controllers (REC) to receive and provide data to remote Radio Equipment (RE).
The vendor has developed a CPRI Master and Slave RTL IP Core, supporting data rates up to 24.33024 Gbps. Designed for high-performance remote radio network applications, this IP core can be configured as either a Remote Equipment (Slave) or a Radio Equipment Controller (Master), facilitating efficient data communication.
Key features
- Provides a framework to facilitate Radio Equipment products development for mobile telecommunications systems.ant to Display Port 2.0/eDP1.5.
- It supports multiple data rates up to 24.33024 Gbps.
- All the Base station manufacturers can use one standard protocol.
- Targets high-performance, remote radio network applications.
- Applicable to the Latest Telecommunication Systems.
- Applicable in 4G Fronthaul and WiMax.

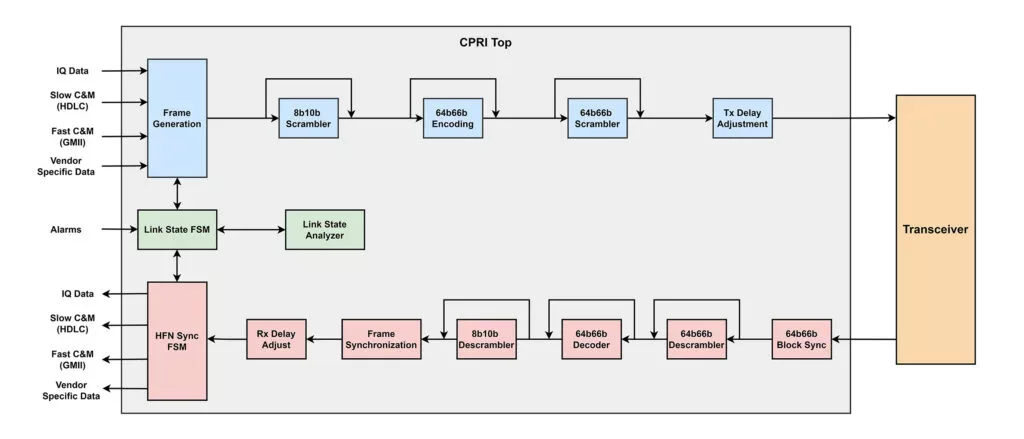

Block Diagram
CPRI Master and Slave block diagram
Specifications
Identity
Part Number
CPRI Master and Slave
Vendor
Logic Fruit Technologies
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
