Correlator IP Core
The function of this core is to correlate an incoming data stream to a stored binary pattern called a code sequence or coefficien…
Overview
The function of this core is to correlate an incoming data stream to a stored binary pattern called a code sequence or coefficient sequence. The data stream may be binary or multi-valued, either signed or unsigned, and is provided to the core one sample at a time. The core can be configured to perform either a real correlation with a single data input stream and a single coefficient sequence, or a complex correlation with two input data streams representing the real and imaginary input terms, and two coefficient sequences representing the real and imaginary coefficients. The core provides multiple channel capability and can support up to 256 channels. Correlations for each channel operate independently from each other. Also, up to 256 different coefficient sequences may be stored in the core, and each channel can select which coefficient sequence is correlated to that channel, so one coefficient sequence could be used for all 256 channels if desired.
Key features
- Supports 1 to 8 bit input data width
- Supports 1 to 256 channels
- Supports a correlation window from 8 to 2048 taps
- Supports oversampled input data from 2x to 8x
- Supports real correlations for either signed or unsigned data
- Supports complex correlations for signed data
- Allows the user to tune the performance of the design by specifying the values of several parameters
- Provides a selectable input FIFO for maximum data throughput
- Allows the user to specify the number of coefficient sequences desired, from 1 to 256
Block Diagram

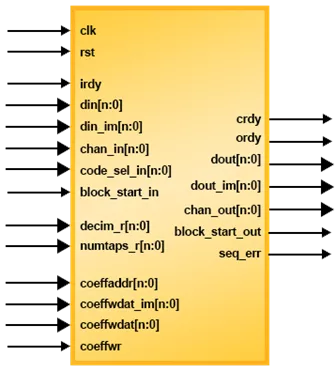

CORR-8BIT block diagram
Specifications
Identity
Part Number
CORR-8BIT
Vendor
Lattice Semiconductor Corp.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
