Capped LDO Regulator
HCLTech offers A low drop-out (LDO) voltage regulator has been designed in a 40nm tsmc technology.
Overview
HCLTech offers A low drop-out (LDO) voltage regulator has been designed in a 40nm tsmc technology. It offers benefits of low dropout voltage, micropower operation and miniaturized packaging.
The core of LDO voltage regulator consists of error amplifier, pass transistor and an external capacitor (Cout=1µf) with ESR=250m?, ESL=1.5nH which is used for regulator stability. Bandgap reference provides reference voltage (Vref) and is connected to the non-inverting terminal of error amplifier. The output of error amplifier drives gate of the pass transistor. The current flowing through the pass transistor is dependent on its dimensions. This dimension influences the drop-out voltage of the proposed LDO
Capped LDO regulator(hcl_ldo_1p0_30m_t40_v1) is designed for the input voltage of 1.8V and 30mA output current. The area of the regulator is 0.035 sq.mm. The quiescent current is 25µA and is stable over the entire range of output load current (0 mA to 30 mA).
The core of LDO voltage regulator consists of error amplifier, pass transistor and an external capacitor (Cout=1µf) with ESR=250m?, ESL=1.5nH which is used for regulator stability. Bandgap reference provides reference voltage (Vref) and is connected to the non-inverting terminal of error amplifier. The output of error amplifier drives gate of the pass transistor. The current flowing through the pass transistor is dependent on its dimensions. This dimension influences the drop-out voltage of the proposed LDO
Capped LDO regulator(hcl_ldo_1p0_30m_t40_v1) is designed for the input voltage of 1.8V and 30mA output current. The area of the regulator is 0.035 sq.mm. The quiescent current is 25µA and is stable over the entire range of output load current (0 mA to 30 mA).
Key features
- Output current range is 0-30mA
- Short Circuit Current Limiting and Overtemperature Protection
- Built–in Soft Start Circuit to Suppress Inrush Current
- Current limit is 158mA.
- Shutdown current< 900nA.
- DC load regulation< 0.68%
- DC line regulation < 0.041%
- Transient overshoot and undershoot is within ±1%.
- Area = 0.035sq.mm.

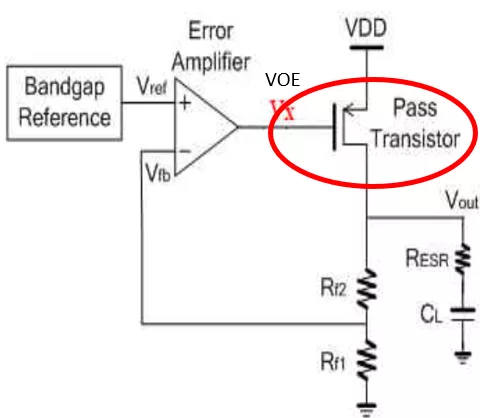

Block Diagram
HCLTech_LDO_t40_v1 block diagram
Applications
- Supply input for RC Oscillator
- Supply input for Digital block like GP ADC and RF ADC
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 40nm | G | — |
Specifications
Identity
Part Number
HCLTech_LDO_t40_v1
Vendor
HCL Technologies
Type
Silicon IP
Provider
HQ:
India
