Capacitive Sensor - 3pF Sensibility, 460–600kHz Output Frequency - X-FAB0.35µm

This macro-cell is a general purpose capacitive sensor core designed for X-FAB 0.35μm XH035 CMOS technology.

Overview

This macro-cell is a general purpose capacitive sensor core designed for X-FAB 0.35μm XH035 CMOS technology.

The circuit is intended for touch sensing applications for use in microcontrollers and has two multiplexed inputs. It detects a change in capacitance with a sensibility of 3pF in its inputs and sets the output frequency accordingly (from 460 to 600kHz).

The core is easily retargeted to any other CMOS technology with R-poly devices.

Key features

  • Capacitive sensing oscillator
  • 3pFsensibility
  • 400–600kHz output frequency
  • Supply voltage: 2.7–3.6V
  • Enable control
  • Indicative area: 0.07mm2

Block Diagram

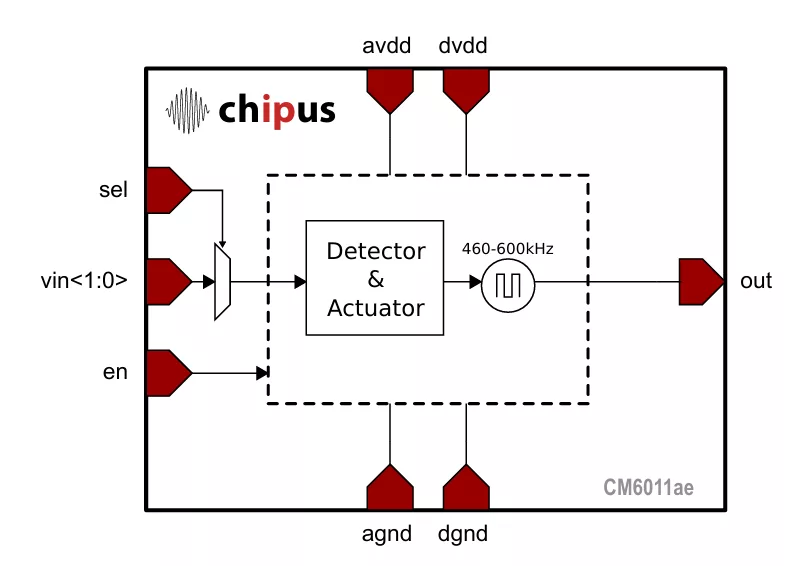

CM6011ae block diagram
