Vendor: Analog Bits Inc. Category: Power On Reset (POR)

Automotive Grade 1 – Power On Reset on GLOBALFOUNDRIES 22FDX-AG1

The Power-On Reset (POR) and Over Current Detection (OCD) macro comprehensively addresses typical SOC start-up power supply monit…

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX View all specifications

Overview

The Power-On Reset (POR) and Over Current Detection (OCD) macro comprehensively addresses typical SOC start-up power supply monitoring needs and over current detection capability, in a fully integrated easy-to-use macro. The POR includes an internal bandgap style voltage reference circuit which is used as a reference to compare the power supplies against. The POR further includes its own timebase reference circuit, so requires no clock or other synchronizing signal to work correctly. Only when both IO and Core power supplies have both exceeded a user-selected voltage level for a user-selected time, will the outputs signal that power is good.

The POR provides outputs at both the IO and core logic levels, with a low level representing a poor or unstable power supply, and a high level representing a good stable power supply. These signals may be used as logical “RSB” or “ENA” signals.

The OCD feature is a Voltage Comparator for Over Current Detection application. Ithas an integrated low- power Bandgap reference and programmable hysteresis levels. The OCD outputs will flag an output High in response to detecting an external voltage higher than the internal reference, plus a selected hysteresis amount.

Key features

  • Integrated voltage and time references for precision stand-alone operation
  • Easy to integrate with no additional component or special power requirements
  • Easy to use and configure
  • Programmable hysteresis, with independent programming available for power-on and power-off levels,
  • Programmable delay feature to assure power supply settling
  • Voltage Comparator for Over Current Detection application, with programmable hysteresis
  • Low power
  • Implemented with Analog Bits’ proprietary architecture
  • Requires no additional on-chip components, minimizing power consumption
  • Designed for Automotive (AEC-Q100) Grade 2 and Grade 1 operation

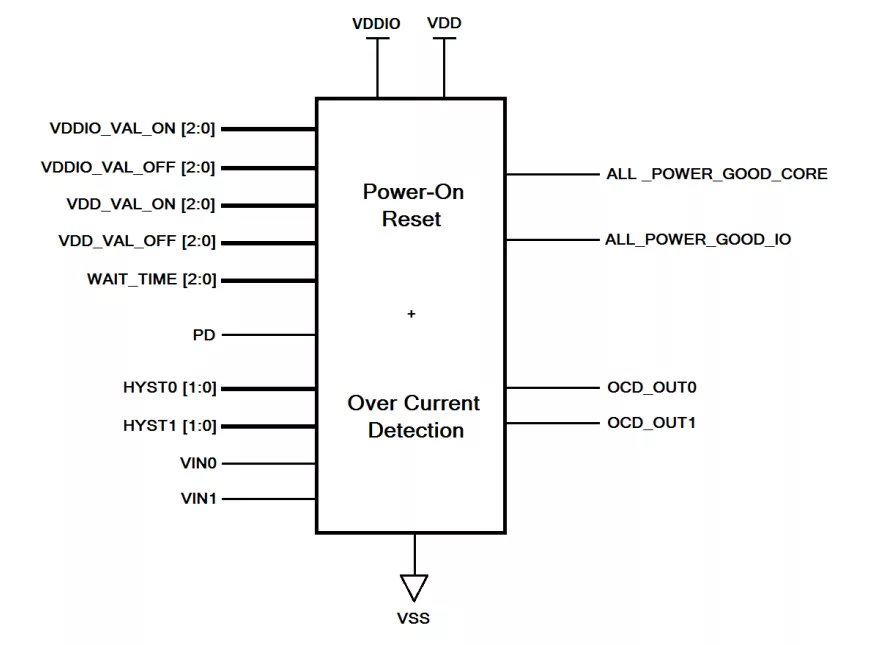

Block Diagram

Automotive Grade 1 – Power On Reset on GLOBALFOUNDRIES 22FDX-AG1 block diagram

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX —

Specifications

Identity

Part Number
Automotive Grade 1 – Power On Reset on GLOBALFOUNDRIES 22FDX-AG1
Vendor
Analog Bits Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Analog Bits Inc.
