Vendor: Great River Technology, Inc. Category: Video Transport

ARINC 818 Transceiver

Great River's ARINC 818 IP Core provides an easy way to implement ARINC 818–compliant interfaces in Xilinx and Altera PLDs.

Contact Provider Request Datasheet

Overview

Great River's ARINC 818 IP Core provides an easy way to implement ARINC 818–compliant interfaces in Xilinx and Altera PLDs. The core can achieve ARINC 818 interfaces up to 4.25 Gbps. The core can be used for transmit-only, receive-only, or transmit-and-receive applications.

The core has many flexible compile-time settings, allowing for various link speeds, line segmentations, and line-synchronization methods. It can be configured for various resolutions and pixel packing methods. Ancillary data can use default values set at compile time, or data can be updated in real time via register interface.

Key features

  • Available for most Xilinx and Altera FPGAs with Gigabit transceivers
  • Supports all ARINC 818 Link speeds up to 8.5 Gbps
  • Simple pixel bus interface
  • Compile time configurable for ADVB video format (resolution, pixel type, etc.)
  • Supports transmit only, receive only, or full transceiver instantiation
  • Configurable for various line segmentations
  • Supports line synchronous transmission
  • Built-in pixel packing/unpacking
  • Link status & detection outputs (CRC_error, SOF/EOF_det, etc.)
  • Tx Object 0 Ancillary data real-time update
  • Tx Object 0 default values compile-time settable
  • Complete Object 0 Ancillary data recovery on Rx
  • Airborne Certification package available

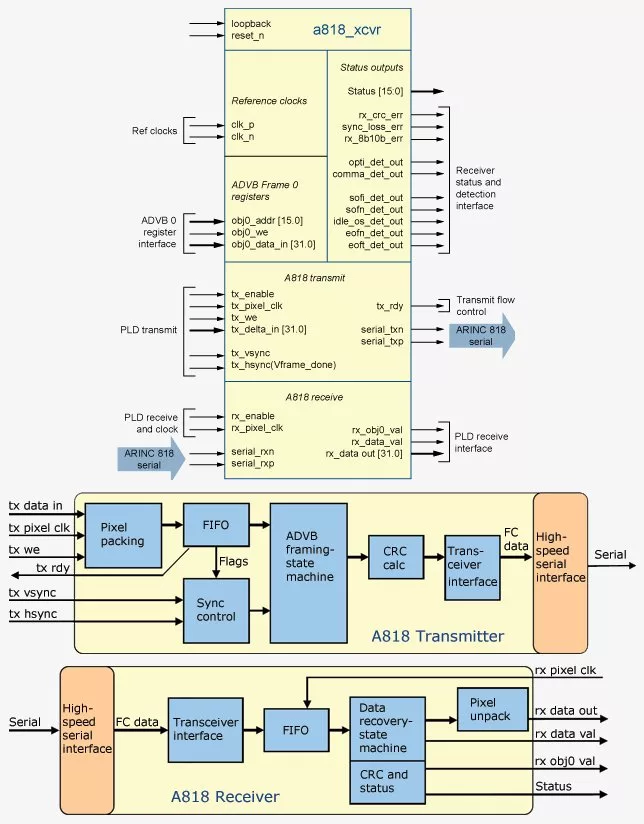

Block Diagram

ARINC 818 (FC-AV) block diagram

What’s Included?

  • VHDL and Encripted VHDL files
  • Instantiation templates
  • VHDL test bench
  • UCF file templates
  • Coregen output files
  • User’s Guide
  • Optional Aerospace Certification Package
  • Optional Chipset and Reference Design

Specifications

Identity

Part Number
ARINC 818 (FC-AV)
Vendor
Great River Technology, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Great River Technology, Inc.
