Vendor: Logic Fruit Technologies Category: Video Transport

ARINC 818-3 IP Core

Logic Fruit Technologies has developed an ARINC 818-3 Transmitter & Receiver IP Core, supporting line rates up to 28 Gbps.

Contact Provider Request Datasheet

Overview

Logic Fruit Technologies has developed an ARINC 818-3 Transmitter & Receiver IP Core, supporting line rates up to 28 Gbps. Designed using DO-254 methodology, this IP core is CEMILAC certified, ensuring high reliability and compliance for aerospace applications.

Key features

  • Compliant to ARINC818-3 Specification. The max speed supported is 28 Gbps.
  • Built on Fiber Channel Audio Video protocol.
  • Point-to-Point Video/Data Transmission support using 64B/66B and 256B/257B Encoding over the serial link.
  • Supports both optical and electrical links.
  • Supports line-segmentation and line-synchronous transmission.
  • Receiver error and status reporting with support for user data.
  • CEMILAC certified and DO-254 DAL-B Compliant design.

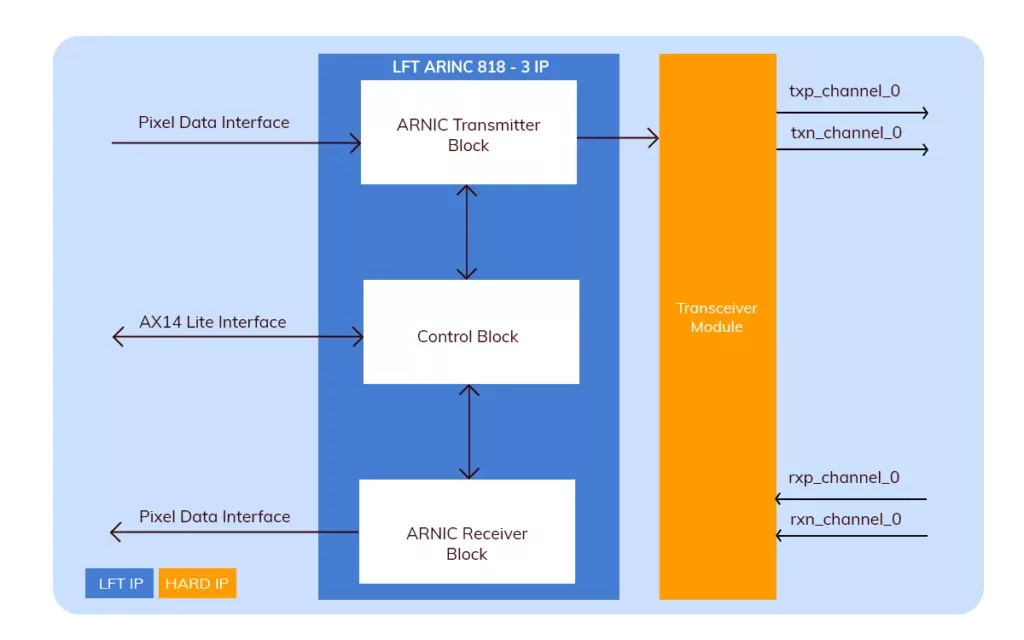

Block Diagram

ARINC 818-3 IP Core block diagram

Specifications

Identity

Part Number
ARINC 818-3 IP Core
Vendor
Logic Fruit Technologies
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Logic Fruit Technologies
