The WEA8ADC18BICAL22G is an 8-bit Successive Approximation Analog to Digital Converter.
Overview
The WEA8ADC18BICAL22G is an 8-bit Successive
Approximation Analog to Digital Converter. It
supports a rail-to-rail input voltage range. The
WEA8ADC18BICAL22G integrates a capacitorbased DAC with an inherent track-and-hold circuit, a
dynamic comparator and the SAR logic state
machine. The WEA8ADC18BICAL22G integrates
gain and offset calibration mechanisms. The device
operates from a 1.8 V supply. The
WEA8ADC18BICAL22G requires 18 cycles for the
conversion. The digital data are available at the
falling edge of the 18th clock pulse.
Approximation Analog to Digital Converter. It
supports a rail-to-rail input voltage range. The
WEA8ADC18BICAL22G integrates a capacitorbased DAC with an inherent track-and-hold circuit, a
dynamic comparator and the SAR logic state
machine. The WEA8ADC18BICAL22G integrates
gain and offset calibration mechanisms. The device
operates from a 1.8 V supply. The
WEA8ADC18BICAL22G requires 18 cycles for the
conversion. The digital data are available at the
falling edge of the 18th clock pulse.
Key features
- Supply Voltage (typ) : 1.8 V
- Resoluton : 8 bits
- Conversion rate : 8 MS
- Vin : 0 V to 1.8 V
- INL : 0.2 LSB (typ)
- DNL: -0.8 LSB (typ)
- Area : 785 um x 260 um
Block Diagram

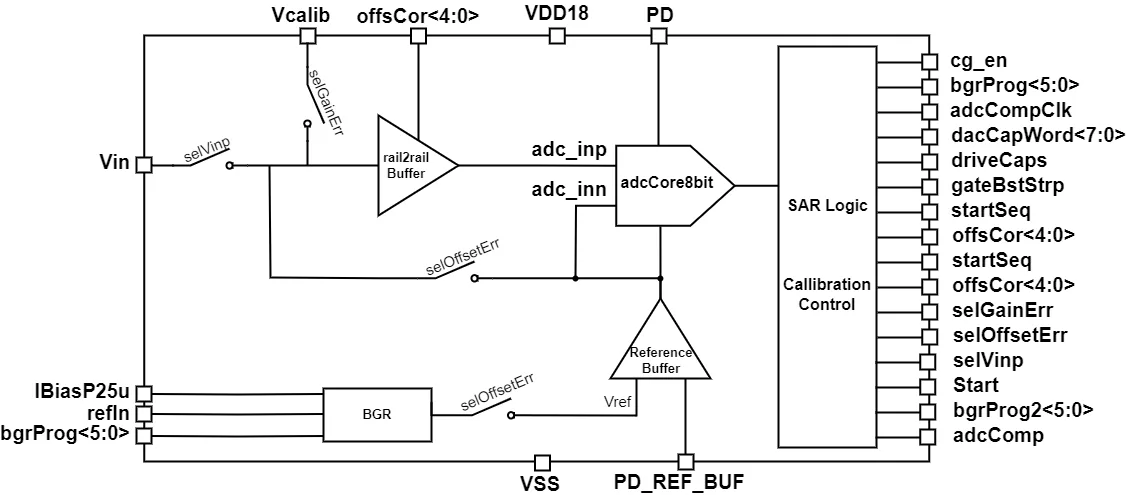

WEA8ADC18BICAL22G block diagram
Applications
- General purpose, Voltage monitoring,Sensor sampling
What’s Included?
- GDSII, System Verilog (SV) model
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEA8ADC18BICAL22G
Vendor
Weasic Microelectronics
Type
Silicon IP
Analog
Resolution bits
8 Bit
