What is AES256-XTS IP Core?
AES256-XTS IP Core is a Symmetric Crypto IP core from Design Gateway Co., Ltd. listed on Semi IP Hub.
Vendor:
Design Gateway Co., Ltd.
Category:
Symmetric Crypto
AES256-XTS IP Core
High throughput & Super Low Latency for secure communication applications.
Overview
High throughput & Super Low Latency for secure communication applications.
AES256-GCM IP core implement the advanced encryption standard (AES) with 256-bit key in Galois/Counter Mode (GCM) which is widely used for Authenticated Encryption with Associated Data (AEAD) application. This IP is suitable to work together with Low Latency TOE10G IP core for high performance, low latency and secure communication applications.
Key features
- Support AES-GCM mode standard.
- Support 256-bit key size, 96-bit iv size.
- Support zero-length AAD or data input.
- Peak throughput rate at 512 Mbits/MHz (AES256-GCM-100G IP)
- High-throughput
- AES256-GCM-100G IP Speed up to 138.24 Gbps @270MHz
- AES256-GCM-10G25G IP Speed up to 28.16 Gbps @220MHz
- AES256-GCM1G IP Speed up to 3.2 Gbps @350MHz

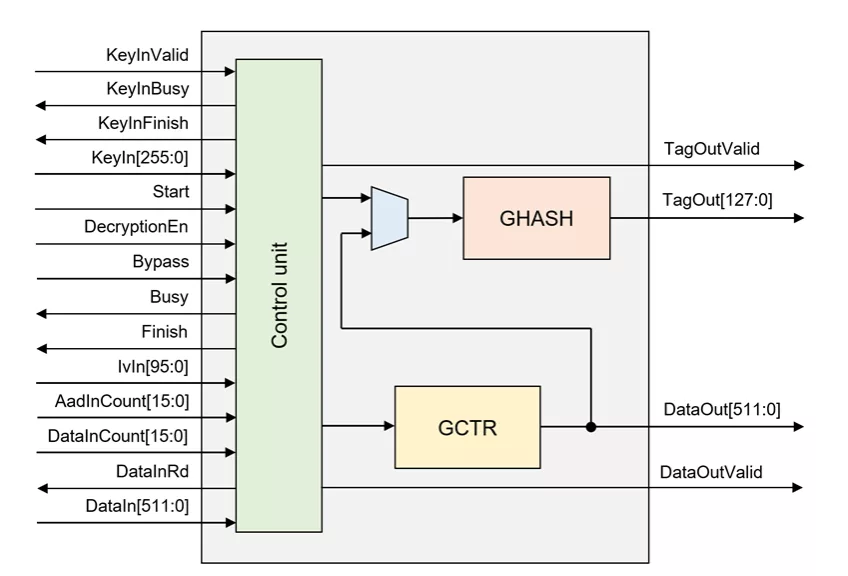

Block Diagram
AES256-GCM block diagram
Benefits
High throughput & Super Low Latency for secure communication applications.
AES256-GCM IP core implement the advanced encryption standard (AES) with 256-bit key in Galois/Counter Mode (GCM) which is widely used for Authenticated Encryption with Associated Data (AEAD) application. This IP is suitable to work together with Low Latency TOE10G IP core for high performance, low latency and secure communication applications.
Specifications
Identity
Part Number
AES256-GCM
Vendor
Design Gateway Co., Ltd.
Type
Silicon IP
Security
Crypto Algorithm
AES
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Thailand
