AES256/AES128 IP

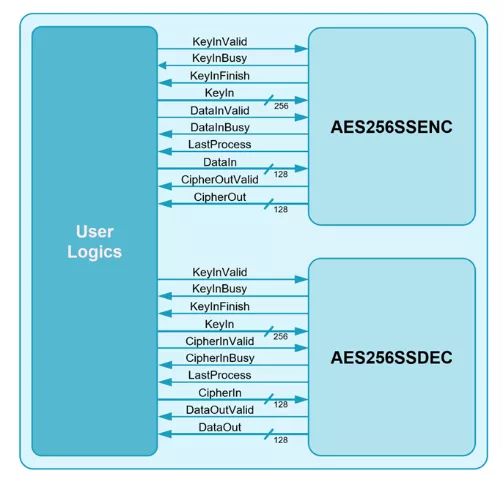

AES-256SS IP specializes in ultra-high throughput and ultra-low latency. IP computes 128-bit data blocks in every 1 clock cycle. Delivering 128Mbps throughput per 1MHz such as 51.2 Gbps @ 400MHz.

AES-128 IP is 1st member of Advanced Encryption Standard (FIPS-197) IP Series, designed to support ECB mode for both encryption and decryption. AES128-IP computes 128-bit data blocks within constant 11 clock cycles. Delivering 11.6Mbps throughput per 1MHz such as 5.8 Gbps @ 500MHz.

AES Encryption IP Series is designed to enhance security features of existing Data Storage and Networking IP Cores. Enabling more opportunity for inventing the secure, efficient and high performance applications.

• Support AES ECB mode standard.
• Key size
  • AES-128 IP: 128 bit
  • AES-256 IP: 256 bit
• Support input data width128-bit.
• High-Throughput rate
  • AES-256SS IP: 51.2 Gbps @400MHz, 128 Mbits/MHz
  • AES-128 IP: 5.8 Gbps @500MHz, 11.6 Mbits/MHz
  • AES-256 IP: 4.26 Gbps @500MHz, 8.53 Mbits/MHz
• Low Latency
  • AES-256SS IP: 15 clock cycles for 128-bit data calculation
  • AES-128 IP: 11 clock cycles for 128-bit data calculation
  • AES-256 IP: 15 clock cycles for 128-bit data calculation
