BandGap V/I Reference Generator

CT20308 is a buffered accurate reference voltage generator, including a low pass filter with an external capacitor for noise redu…

Contact Provider Request Datasheet
TSMC 130nm BCD+ View all specifications

Overview

CT20308 is a buffered accurate reference voltage generator, including a low pass filter with an external capacitor for noise reduction and PSRR improvement. In order to achieve a total error <1%, the amplifier in the bandgap core block implements an offset cancellation circuitry.

Reference voltage thermal drift is minimized by means of 7 bits trimming so that the voltage reaches the “golden point”.

Additional 6 bits are used to flatten the output thermal characteristic while performing trimming at one single temperature.

CT20308 includes reference currents generators, both using an external accurate resistor and a completely internal one tied to poly resistor values.

CT20308 also includes an over temperature detection circuit and Power On Reset.

Key features

  • VDD = 2.5 ÷ 5V
  • Reference Voltage at VREF = 1.0V
  • Reference voltage accuracy: ±0.4% in high performance (HP) mode, ±1% in low performance (LP) mode
  • VREF integrated noise from 10Hz to 100kHz: <29µVrms in HP mode, <157µVrms in LP mode
  • 7 bits trimming for VREF, 6 bits trimming for temperature drift correction. Both trimmings performed at the same single temperature
  • Reference currents: 1µA ± 1.5% (typical) in HP mode, ±2.5% in LP mode
  • Current consumption: 41µA in HP mode, 22 in LP mode
  • Operating temperature: -25 ÷ 125°C

Block Diagram

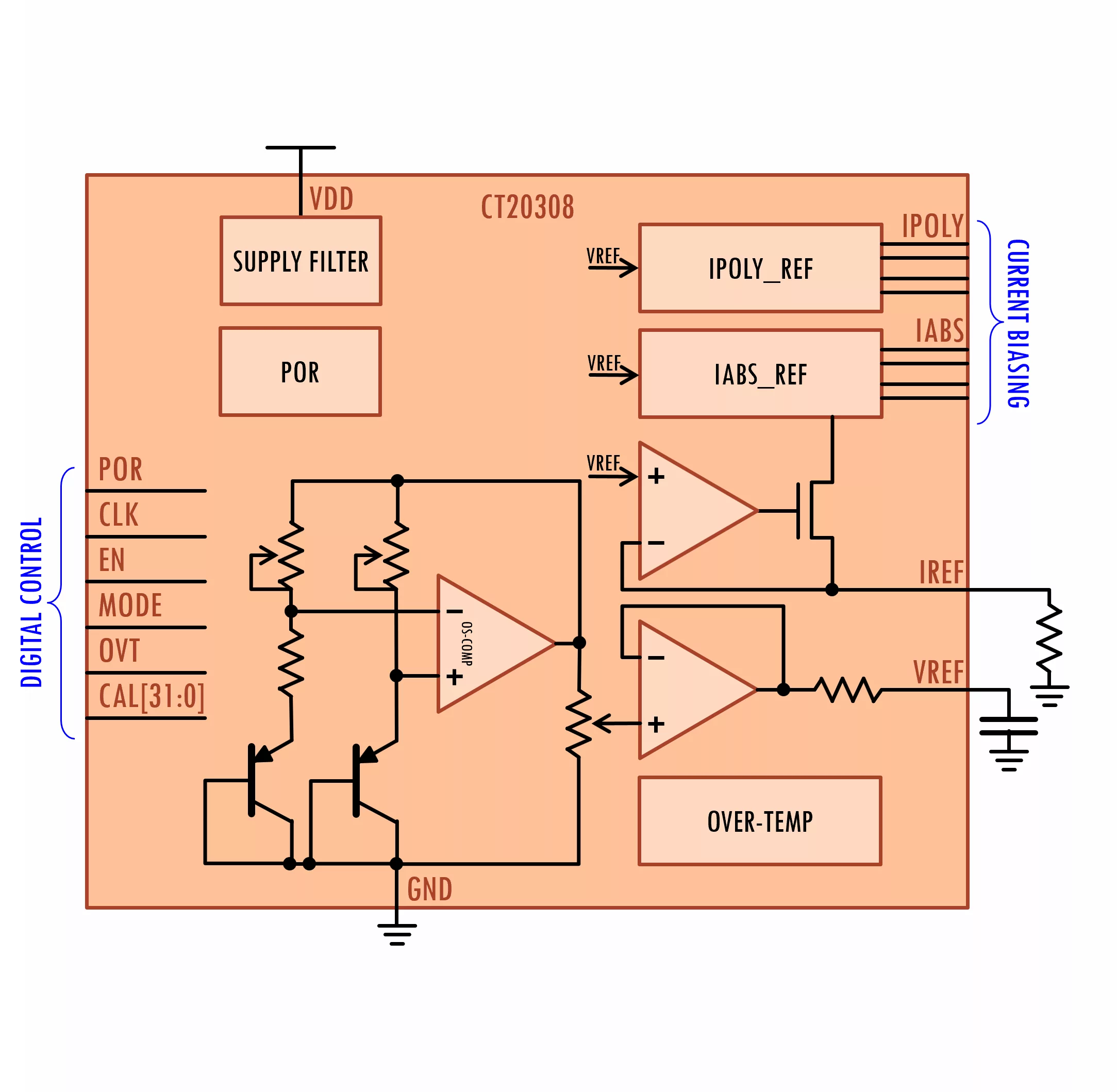

CT20308 block diagram

Benefits

  • PVT characterized
  • Easy portability
  • In mass-production

Applications

  • General Purposes IP

What’s Included?

  • Datasheet
  • Integration guidelines
  • GDS2 and LVS Netlist
  • Footprint (.LEF)
  • Test Specifications

Silicon Options

Foundry Node Process Maturity
TSMC 130nm BCD+ —

Specifications

Identity

Part Number
CT20308
Vendor
Canova Tech Srl
Type
Silicon IP

Files

Product Sheet Download
