Vendor: Beyond Semiconductor Category: AC'97

AC97 Audio Controller

The Beyond AC97 Audio Controller IP Core enables audio control for SoC and FPGA.

Overview

The Beyond AC97 Audio Controller IP Core enables audio control for SoC and FPGA. The Beyond AC97 core offloads audio data handling from the processor by using a dedicated DMA engine. The Beyond AC97 Audio Controller supports AC97 revision 2.3 compliant audio CODECs. External interface supports one external AC97 CODEC with 6 output (3 of them can be Double Rate Audio) and 3 input channels. The product is silicon proven in production silicon.

Key features

  • Fixed 48kHz audio support
  • Hardware variable sample rate support from 8kHz to 48kHz (up to 96kHz with Double Rate Audio enabled)
  • Double Rate Audio support for Left, Right and Center channels
  • 16 bit sample size support (18 and 20 bit support planned in future)
  • Mono, stereo or multichannel (1, 2, 4 or 6 channels) audio output support
  • Stereo Input and dedicated Mono microphone Input Channel support (all together 3 input channels)
  • Power management support (individual subsections or full power-down mode)
  • Full access to codec registers (tone, loudness, 3D stereo enhancement, etc.)

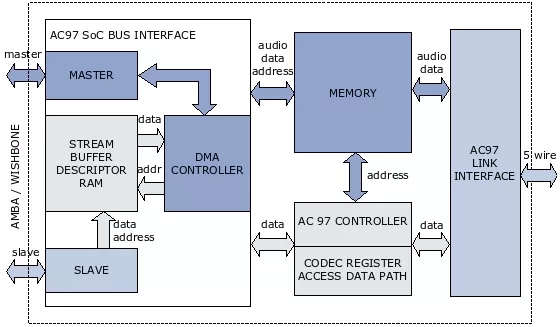

Block Diagram

AC97 Audio Controller block diagram

Applications

  • Embedded
  • Portable and wireless
  • Home entertainment consumer electronics

What’s Included?

  • Soft core RTL in Verilog
  • Test bench in Verilog
  • Full documentation
  • Engineering support

Specifications

Identity

Part Number
AC97 Audio Controller
Vendor
Beyond Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Beyond Semiconductor
HQ: Slovenia
