76GHz to 81GHz FMCW Radar Receiver
The WEA7681RX22G is a Zero-IF receiver for radar applications covering the 76 GHz to 81 GHz automotive band.
Overview
The WEA7681RX22G is a complete Zero-IF receiver for radar applications covering the 76 GHz to 81 GHz automotive band. The receiver integrates a Low Noise Amplifier, a down conversion mixer, a 1st order active highpass filter, a 1st order passive high pass filter and a 3rd order lowpass filter and a variable gain amplifier with digital gain control. The local oscillator chain is also integrated on the same IP. The LO accepts an input at 38 GHz to 40.5 GHz. The receiver has a dual saturation detector scheme for strong blocker detection at the mixer and the filter output. The receiver has a build-in Analog Test Bus (ATB) for complete monitoring of the bias conditions of all blocks, for FuSa. It is implemented in 22FDX FD-SOI process. The WEA7681RX22G occupies a silicon area of 1450 um x 450 um.
Key features
- RF Input Frequency Range: 76 GHz to 81 GHz
- LO Input Frequency Range: 38 GHz to 40.5GHz
- Output Frequency Range: DC-120 MHz
- Power Supply Voltages: 1.8V Analog, 0.8V RF, 0.8V Logic.
- RX noise figure: 8.7 dB typ. (Includes 1dB loss from package to silicon transition)
- Programmable RX Gain: 22.5 – 62.5 dB
- RX In-band OIP3: 29 dBm
- Input 1dBCP: -19 dBm (front end compression)
- RX Channel Flatness @ 1GHz BW: 0.19 dB
- Programmable IF Bandwidth:
- Low Pass Filter Cut-off: 60 MHz - 120 MHz
- High Pass Filter Cut-off: 2 MHz - 30 MHz
- Automotive Grade 1 (-40 oC to 125 oC).
- Power Consumption: 203 mW
- Area:1450 um x 450 um

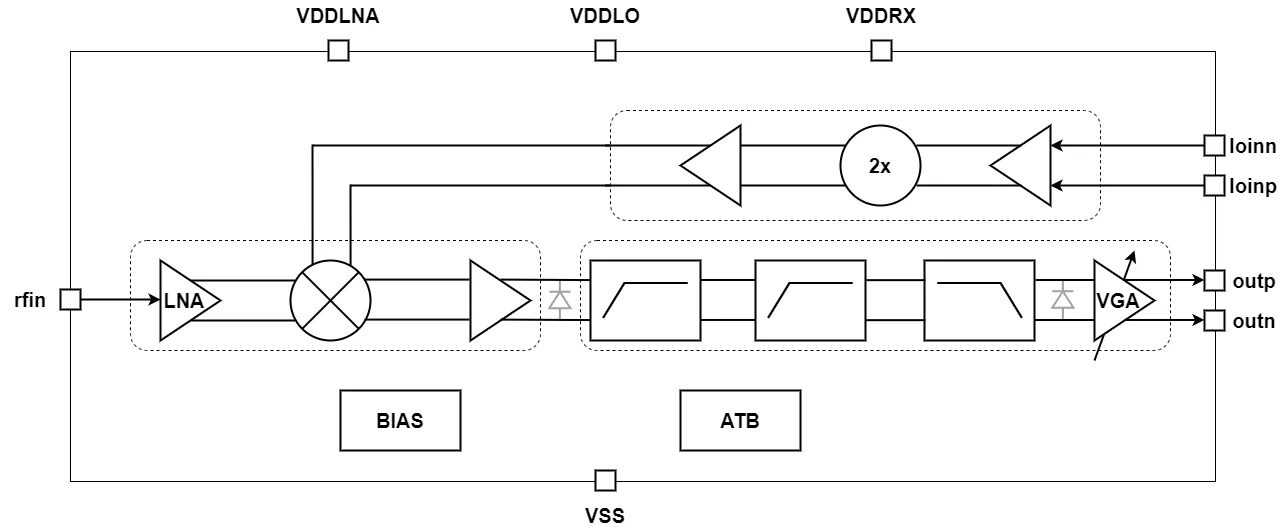

Block Diagram
WEA7681RX22G block diagram
Applications
- Automotive Radar applications
What’s Included?
- GDSII, Database, SystemVerilog Models
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEA7681RX22G
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Greece
