4K, 4:2:0/4:2:2:/4:4:4, 8/10/12 bit HEVC Decoder

HEVC video decoder IP core by ParaQum Technologies is an all-hardware, high performance video decoder which is easily integrable …

Contact Provider Request Datasheet

Overview

HEVC video decoder IP core by ParaQum Technologies is an all-hardware, high performance video decoder which is easily integrable to complex FPGA based SoCs and supports upto 4K video decoding upto 60fos on Xilinx 7 series FPGAs. The core architecture is optimized for very low resource utilization. Coupled with low running frequencies, ParaQum HEVC Decoder IP core is ideal for deployment in mid-range FPGAs.

ParaQum HEVC decoder is world's first 4K real time HEVC decoder implemented on an FPGA with sub 150MHz clock frequencies.

High Efficiency Video coding (H.265) is the emerging video compression standard that promises 50% bit rate reduction compared to its predecessor H264. This IP core takes HEVC compliant elementary streams and outputs raw video. The decoder interfaces are AXI compliant for easy integration.

Key features

  • Compliance standard – HEVC (H.265) Main profile Level 5.1
  • Max output bitrate - 4K@60fps / 1080p@240fps
  • Max input bitrate - 40Mbps
  • Input Format – H.265 Elementary streams
  • Output color format – YUV
  • Chroma formats - 4:2:0/4:2:2/4:4:4
  • Pixel Bit depth 8bits,10bits,12bits
  • Max frequency - 150 MHz
  • Device family support - Zynq 2000, Kintex 7, Virtex 7
  • Real time decoding with maximum latency of 8ms
  • Simultaneous decoding of up to 16 video channels (optional)
  • Supports All-Intra Low-delay and Random-access configurations
  • Optional AAC audio decoder

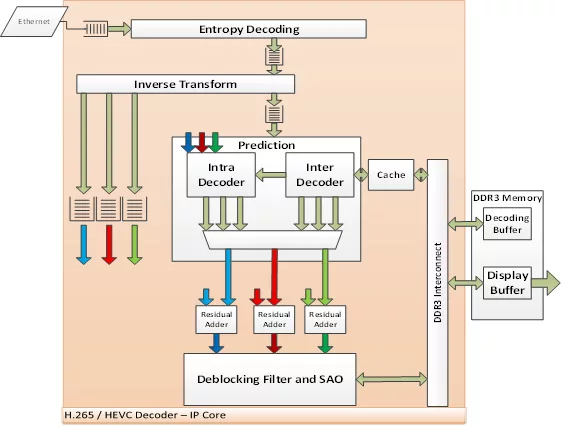

Block Diagram

Paraqum HEVC Decoder block diagram

Benefits

  • Tailored architecture for efficient FPGA implementation
  • Ability to decode 4K HEVC on mid-range FPGAs
  • Low resource usage to enable SoC integration on single FPGA

Applications

  • Digital cinema
  • Broadcast contribution links

What’s Included?

  • FPGA proven synthesizable RTL/netlist source code
  • RTL test bench
  • Datasheet/Integration Guide
  • Verification Guide

Specifications

Identity

Part Number
Paraqum HEVC Decoder
Vendor
ParaQum Technologies
Type
Silicon IP

Videos

This video demonstrates real time decoding of 4K 30fps using Paragon HEVC decoder on Xilinx Zynq ZC 706 FPGA. Paragon HEVC decoder is capable of decoding 4K videos up to 45 fps and supports bit depths up to 12. 4:2:0 , 4:2:2 and 4:4:4 profiles are suppor
This video demonstrates real time decoding of 4K 30fps using Paragon HEVC decoder on Xilinx Zynq ZC 706 FPGA. Paragon HEVC decoder is capable of decoding 4K videos up to 45 fps and supports bit depths up to 12. 4:2:0 , 4:2:2 and 4:4:4 profiles are supported in Paragon HEVC decoder

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

ParaQum Technologies
HQ: Sri Lanka
Contact ParaQum Technologies
