Vendor: Tetrivis Category: LDO Voltage Regulator

40nm 1.8V Programmable 1.1V LDO Regulator with 50mA max. output

The TRV702TSM40LP IP is a 1.8V low-power programmable 1.1V LDO implemented in TSMC Low-Power 40nm CMOS process technology.

TSMC 40nm G View all specifications

Overview

The TRV702TSM40LP IP is a 1.8V low-power programmable 1.1V LDO implemented in TSMC Low-Power 40nm CMOS process technology. Its low noise and high-precision makes it especially suitable for use in wireless communication and broadcast integrated circuit subsystems (LTE, WiFi, WiMAX, DAB, DAB+, FM, HDFM, DRM, etc).

Key features

Programmable 0.9V to 1.275V output voltage in 25mV steps
2% LDO output variation across process, supply and temperature
Low-Power Sleep Mode (usable when reference TRV701TSM40LP Band-Gap is disabled)
50uA quiescent current

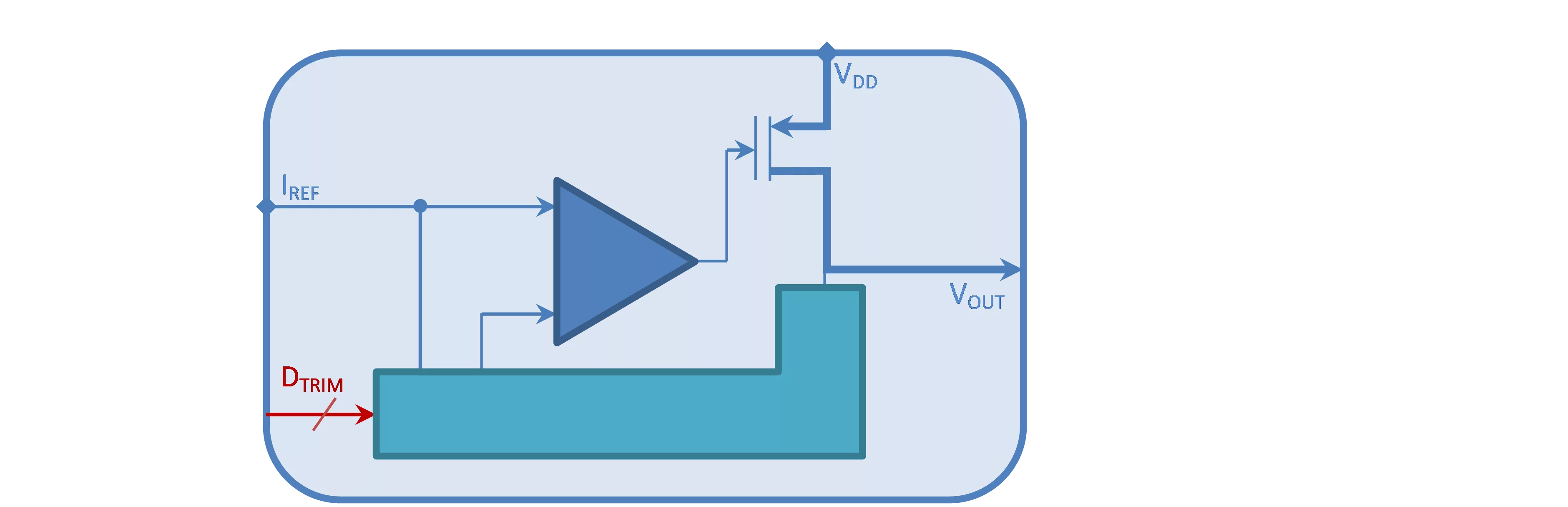

Block Diagram

TRV702TSM40LP block diagram

Benefits

Low-power and low-noise programmable 1.1V LDO with less than 50uA quiescent current

Applications

Programmable low-power 1.1V LDO is suitable for embedding in ASIC and SoC subsystems for:
LTE, WiFi, WiMAX, DAB, DAB+, FM, HDFM, DRM, and many more applications.

What’s Included?

Behavioural Models
Timing Models
GDSII Layout Database
Netlist for LVS verification
Usage and Integration Guidelines
Databook

Silicon Options

Foundry	Node	Process	Maturity
TSMC	40nm	G	—

Specifications

Identity

Part Number

TRV702TSM40LP

Vendor

Tetrivis

Type

Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Tetrivis

HQ: United Kingdom
