4:4:4 Y’CbCr to 4:2:2 Y’CbCr Chroma Resampler (ITU-R BT.601)

The DB1820 Chroma Resampler IP Core down converts 4:4:4 Y’CbCr to 4:2:2 Y’CbCr in accordance with the ITU-R BT.601 standard requirements.

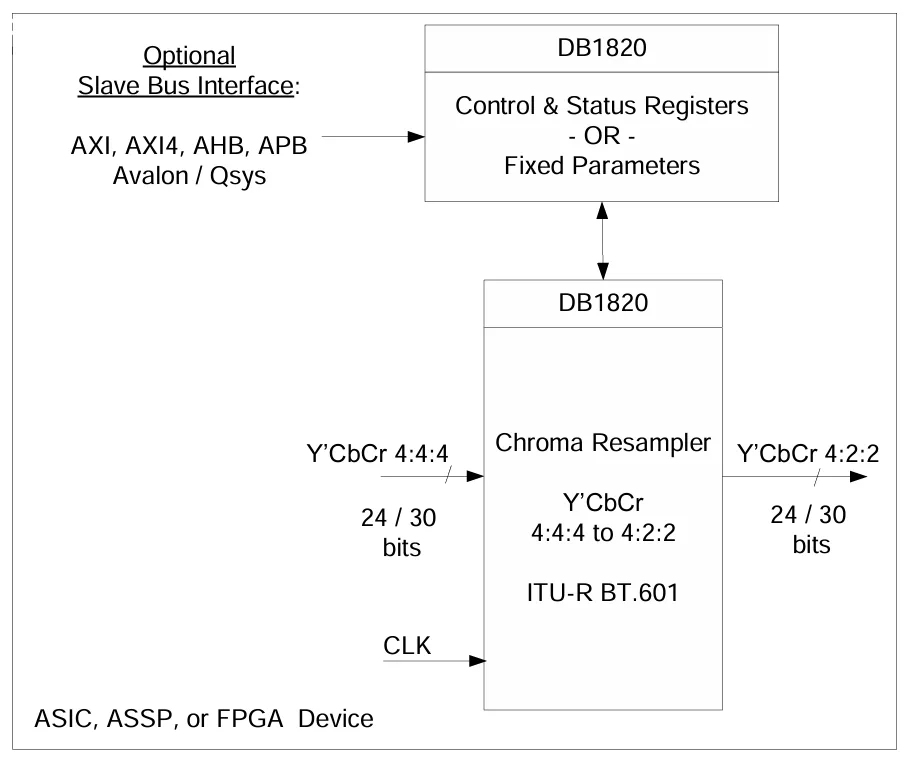

Figure 1 depicts the DB1820 Chroma Resampler IP Core embedded within an integrated circuit device. The DB1820 accepts 4:4:4 Y’CbCr digital components and timing control signals and down converts them to 4:2:2 Y’CbCr components. Control & Status, including the down converter’s filter coefficients, can be programmed into optional DB1820 registers via a bus interface, or set as non-register fixed parameters at synthesis for a smaller VLSI footprint.

• 4:4:4 Y’CbCr and 4:2:2 Y’CbCr input & output components each at 8- or 10-bits, unsigned data type. User selectable at 24- or 30-bit parallel or serial input / output.
• Coefficients are 3-bit fractional data type
• Control signal enable for start-up and blanking period disabling
• After down conversion, each CbCr sample component can be truncated or rounded-up, and saturated or clamped for overflow or underflow, respectively
• Equalization of Y’ component and optional delay for display VSYNC, HSYNC, and DE signals
• User optional Slave Bus Interface for programming Control & Status Registers, which includes the down converters coefficients, or fixed parameters set atsynthesis
• Member of Digital Blocks’ Video Signal & Image Processing IP Core Family, which include the following:
  • DB1800 - Standard Definition NTSC/PAL/SECAM Video Sync Separator
  • DB1810 - Color Space Convert
  • DB1820 - Chroma Resampler
  • DB1825 - RGB to Y’CbCr Color Space Convert with 4:4:4 to 4:2:2 Chroma Resampler
  • DB1830 - BT.656 Encoder
  • DB1840 - BT.656 Decoder
  • DB1892 - RGB to CCIR601/656 Encoder
• On-Chip Interconnect Compliance (optional) – Avalon/Qsys, AXI, AXI4, AHB:
  • Avalon Interface Specification (MNL-AVABUSREF-2.0)
  • AMBA AXI Protocol Specification (V1.0)
  • AMBA AXI4 Protocol Specification (V3.0)
  • AMBA AHB Specification 2.0
  • AMBA APB Specification 2.0
• FPGA Integration Support:
  • Altera Quartus II & Qsys / SOPC Integration & NIOS II EDS Reference Design
  • Xilinx ISE Design Suite utilizing AMBA AXI4 & Embedded Development & Software Development Kits
• ASIC / ASSP Design-In Support:
  • Compliance to RTL Design & Coding Standards
  • Digital Blocks Support Services
• Fully-synchronous, pipelined architecture, synthesizable Verilog RTL core

• The DB1820 is available in FPGA netlist or synthesizable RTL Verilog, along with Synopsys Design Constrains, a simulation test bench with expected results, reference design, and user manual.
