300mA buck converter - TSMC 0.18um BCD

CM1821hf is a 300mA, synchronous step-down integrated buck DC-DC converter IP core optimized for 3MHz fixed frequency operation a…

TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

CM1821hf is a 300mA, synchronous step-down integrated buck DC-DC converter IP core optimized for 3MHz fixed frequency operation and designed for CV018MS (0.18um HV).

The input voltage is fixed in 5V and the output voltage can be configured to 1.2V or 1.8V. It operates in PWM (current control mode) for heavy loads and has a PFM mode for light loads, improving it’s efficiency.

It also features integrated compensation and rectifier switches, power good indicator and over-current protection (at start-up and cycle-bycycle).

Key features

  • 5V Input Voltage
  • 1.2/1.8V Output Voltage options
  • 300mA maximum current load
  • Optimized for 3MHz fixed frequency operation
  • Internal synchronous rectifier and compensation
  • PWM current control mode for heavy loads
  • PFM control for light loads
  • Power good indicator
  • Over-current protection
  • Fast and controlled start-up
  • Area: 0.85 mm2(x=1304 um, y=652 um)

Block Diagram

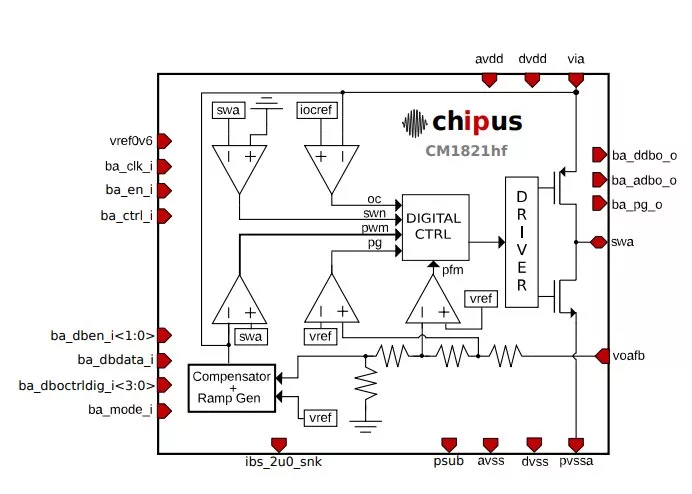

CM1821hf block diagram

Applications

  • Power Management Systems

What’s Included?

  • GDS database
  • LVS netlist
  • Datasheet with integration guidelines
  • Customer support

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 Silicon Proven

Specifications

Identity

Part Number
CM1821hf
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
