2MHz Ultra Low Power Oscillator - Ultra low power (720nW) Silterra 0.18 um

This macro-cell is a general purpose, ultra low power internal oscillator core designed for SilTerra 0.18μm CL180G CMOS technolog…

Silterra 180nm G Silicon Proven View all specifications

Overview

This macro-cell is a general purpose, ultra low power internal oscillator core designed for SilTerra 0.18μm CL180G CMOS technology.

The circuit has internal level shifting. A 4-bit digital bus allows frequency calibration against process variations. It requires an external 15.5nA current bias (sink), which can be implemented with CM1014ff IP.

The core is easily retargeted to any other CMOS technology due to its MOSFET-only oscillator architecture.

Key features

  • Frequency calibrated (typ. ±2%)
  • Internal level shifter
  • Enable control
  • Ultra low current (600nA@1.2V)
  • Indicative area = 0.0022

Block Diagram

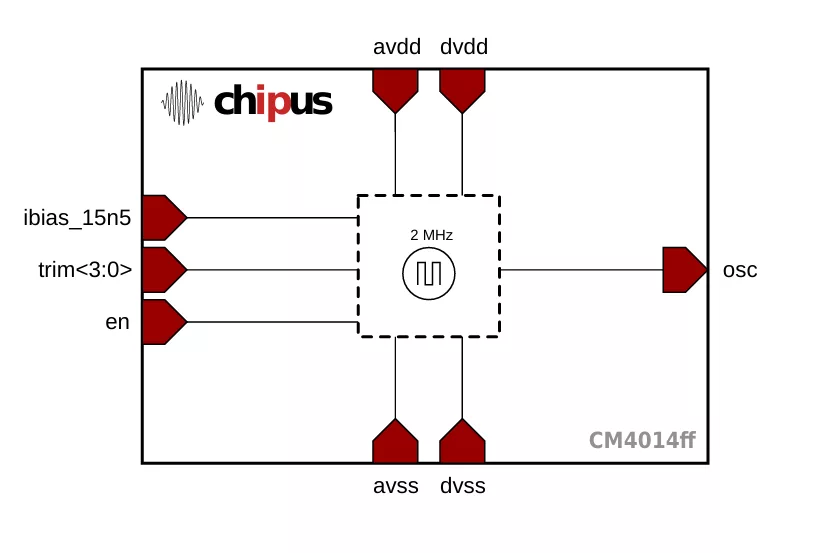

CM4014ff block diagram

Silicon Options

Foundry Node Process Maturity
Silterra 180nm G Silicon Proven

Specifications

Identity

Part Number
CM4014ff
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
