What is 256-steps adjustable delay cell?
256-steps adjustable delay cell is a DLL IP core from VEGA Semiconductor listed on Semi IP Hub. It is listed with support for umc Available on request.
Vendor:
VEGA Semiconductor
Category:
DLL
256-steps adjustable delay cell
U40LPDLLDLYV1 is a 256-steps adjustable delay cell IP.
Overview
U40LPDLLDLYV1 is a 256-steps adjustable delay cell IP. It is based on UMC 40nm low power process.
Key features
- Process: UMC 40nm Logic and Mixed-Mode 2.5V/1.1V Low Power Process
- Adjustable 8-bit delay steps, Maximum delay time 25.5ns, and Minimum delay time = 0.1ns (resolution: 0.1ns).
- Power Supply: Core power supply 1.1V
- Area : 600um ^2

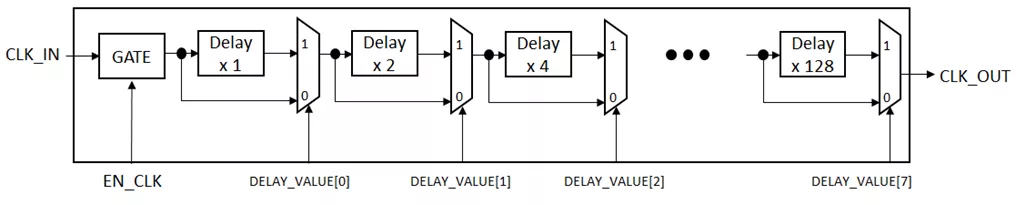

Block Diagram
U40LPDLLDLYV1 block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| UMC | 40nm | 40nm 400 nm | Available on request |
Specifications
Identity
Part Number
U40LPDLLDLYV1
Vendor
VEGA Semiconductor
Type
Silicon IP
Provider
HQ:
Taiwan
