18-bit Sine/Cosine Function
SINCOS_X calculates the sine and cosine of an angle in radians.
Overview
SINCOS_X calculates the sine and cosine of an angle in radians. It has a fully pipelined architecture and uses fixed-point mathematics throughout. Input values are accepted as 18-bit signed values in the range -π to π. Output values are 17-bit signed values in the range -1 to 1. For input values outside the specified range, sin_out defaults to 0 and cos_out defaults to -1.
Input and output values are specified in [18 15] format with 1 sign bit, 2 integer bits and 15 fraction bits. Output values are in [17 15] format with 1 sign bit, 1 integer bit and 15 fraction bits. Internally, the function uses a quarter-wave SIN function core implemented as a 2nd order polynomial with dynamic coefficients. Values are sampled on the rising clock-edge of clk when en is high. The function has a 5 clock-cycle latency.
Key features
- Key Design Features
- Synthesizable, technology independent VHDL Core
- Combined functions y = sin(x), y = cos(x)
- Input range -π ≤ x ≤ π
- Output range -1 ≤ y ≤ 1
- Based on a quadratic polynomial with dynamic coefficients
- Input values as 18-bit signed fractions in radians
- Output values as 17-bit signed fractions
- Accurate to within 0.00017
- High-speed fully pipelined architecture
- Tiny implementation
- Only 5 clock-cycles latency
Block Diagram

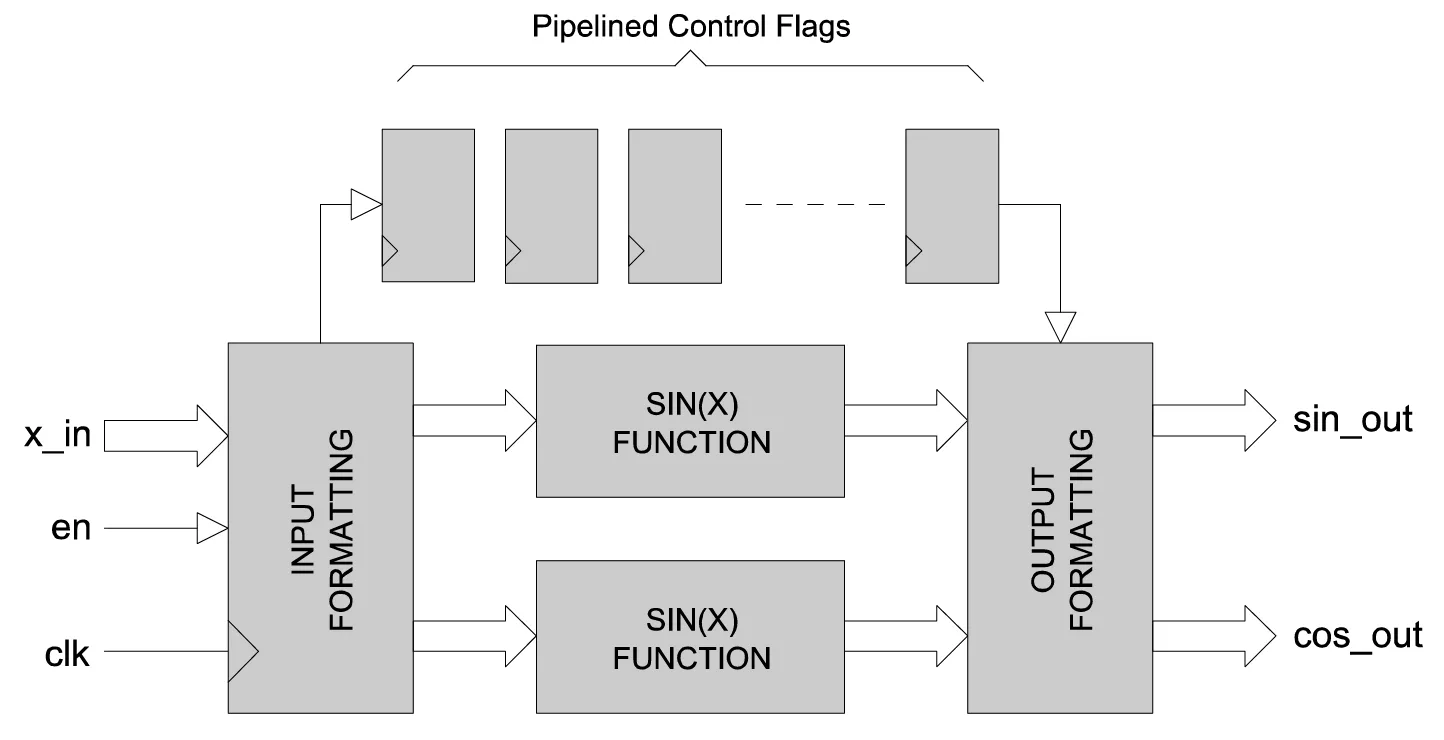

SINCOS_X block diagram
Applications
- Fixed-point mathematics
- Quadrature signal generation in digital communications
- Cheaper alternative to using a 65k x 16-bit LUT (128kbytes)
- Cheaper alternative to CORDIC
