Vendor: Chipus Microelectronics Category: Voltage Reference

17nA Current Bias with Enable Low Voltage (1.0V), Ultra Low Power (90nW @ 1.8V)

This macro-cell is a low power general purpose current bias generator core designed for TowerJazz 0.18µm TS18SL CMOS technology.

Tower 180nm SL Silicon Proven View all specifications

Overview

This macro-cell is a low power general purpose current bias generator core designed for TowerJazz 0.18µm TS18SL CMOS technology.

The circuit generates 2 × NMOS 17nA current branches. The current bias is temperature compensated.

Output currents come from NMOS drain terminals, thus being sink-type sources.

Key features

  • Low power current bias
  • Low TC
  • Ibias=17nA ±12% (without trimming)
  • Current consumption lower than 61nA in active mode
  • Flexible voltage operation: 1.0V–2.0V
  • Enable control
  • Indicative area: 0.0037mm2

Block Diagram

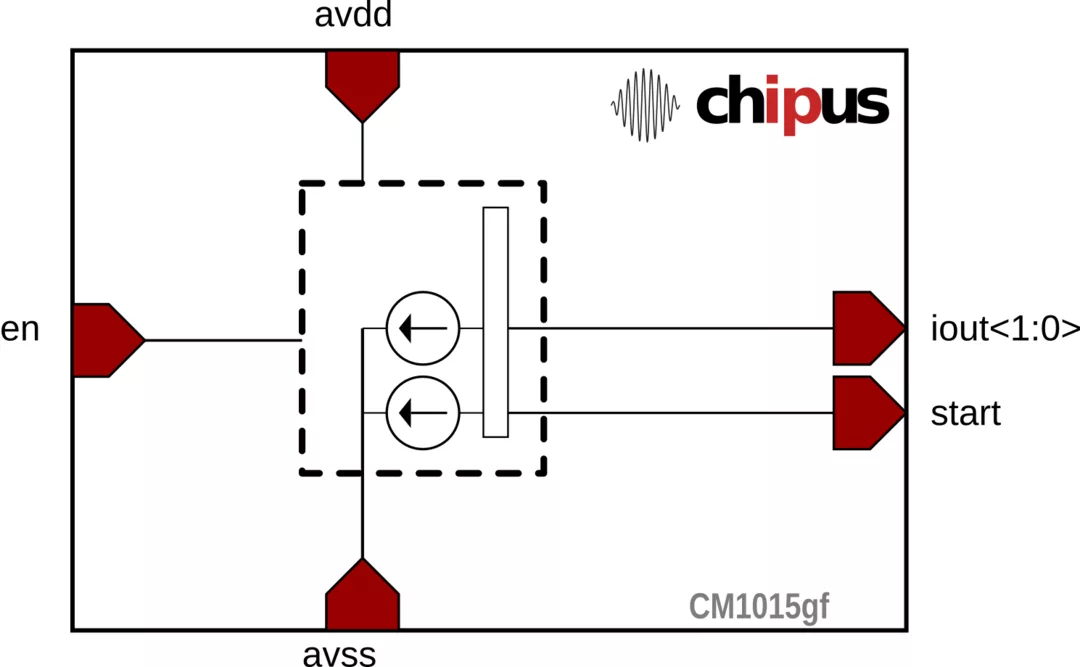

CM1015gf block diagram

Applications

  • Passive/active RFID tag ICs
  • Portable devices
  • Energy Harvesting ICs
  • Hearing Aids

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Silicon Options

Foundry Node Process Maturity
Tower 180nm SL Silicon Proven

Specifications

Identity

Part Number
CM1015gf
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download
