What is 10b-10KSps - Cyclic ADC?
10b-10KSps - Cyclic ADC is a ADC IP core from Canova Tech Srl listed on Semi IP Hub.
Vendor:
Canova Tech Srl
Category:
ADC
10b-10KSps - Cyclic ADC
CT22202 is a silicon proven analog-to-digital converter specifically designed to accomplish the most stringent performance requir…
Overview
CT22202 is a silicon proven analog-to-digital converter specifically designed to accomplish the most stringent performance requirements of industrial sensor monitoring and signal conditioning applications.
The ADC is a 14-bit Sigma-Delta architecture up to 10Ksps with ±2 INL and a power consumption of 1mA@1Ksps.
Key features
- 14 bits, 10Ksps Sigma-Delta ADC
- 3.3V Power Supply
- single-ended input
- ±2 INL and ±1 DNL at 1Ksps
- Current/Sample Rate of 1mA@1Ksps
- Power Down Current 1uA

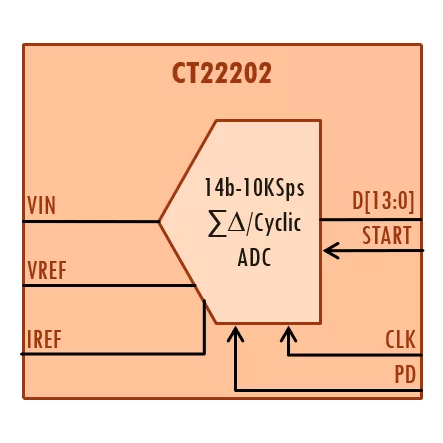

Block Diagram
CT22202 block diagram
Applications
- Industrial Sensor Monitoring
- Medical devices
- Embedded sensing
- Complex Analog Front-End Interfaces
Specifications
Identity
Part Number
CT22202
Vendor
Canova Tech Srl
Type
Silicon IP
Analog
Resolution bits
10 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Italy
