14-bit, 50 MSPS Ultra Low Power ADC in 28nm CMOS

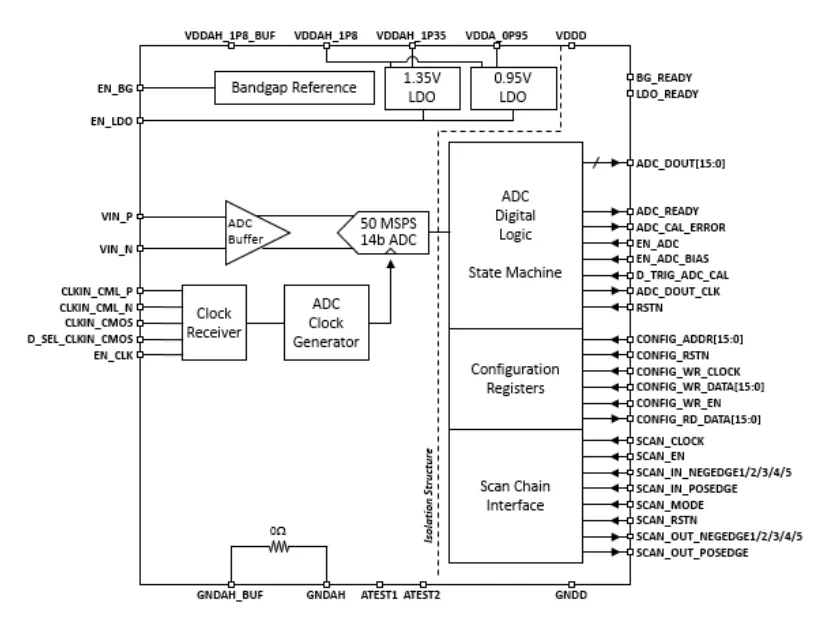

The ODT-ADP-14B50M-28 is a low power high speed pipelined ADC designed in a 28nm standard CMOS process with an optional input buffer.

This 14-bit ADC features excellent dynamic performance of 65dB SNDR and high linearity. The ADC can work at sampling rates up to 50MSPS for maximum flexibility. It is operational from -40°C to 125°C.

• 14-bit ADC with optional integrated input buffer
• Sampling rate up to 50MSPS
• Fully differential operation
• 1.8V analog supply and 0.9V digital supply
• Optional integrated LDOs to generate internal 1.35V and 0.95V analog supplies.
• 1.25Vpp differential input signal range
• Operational from -40°C to 125°C
• Up to 65dB SNDR
• High linearity
• Internal bandgap reference for biasing
• Ultra-low power dissipation
• Power dissipation scalable with sampling rate

• General purpose software defined radio
• High speed data acquisition systems
• Cellular base station
• Broadband communications
• High-speed medical imaging
• Wideband satellite receiver

• Datasheet
• Hard Macro (GDSII)
• Characterization Report (as applicable)
• Abstract View (LEF) for top level connectivity
• Spectre Netlist (as needed upon request)
• Behavioral Model
• Integration and Customer Support
