Vendor: Chipus Microelectronics Category: Oscillator

12MHz Internal Oscillator - Low Power (40µA@12MHz@3.3V) XFAB 0.35 um

This macro-cell is a general purpose, low power internal oscillator core designed for X-FAB 0.35μm XH035 CMOS technology.

Overview

This macro-cell is a general purpose, low power internal oscillator core designed for X-FAB 0.35μm XH035 CMOS technology.

The circuit has an internal start-up circuit. CM4013ae requires an external 580nA current bias for proper operation, which can be best achieved using the CM1511ae combo voltage \& current reference. A 4-bit digital bus allows frequency calibration against process variations.

The core is easily retargeted to any other CMOS technology due to its MOSFET-only oscillator architecture.

Key features

  • 12MHzinternal oscillator
  • Lowconsumption (<40µA)
  • Supply voltage: 2.7–3.6V
  • Frequency calibrated (typ. ±3%)
  • Powerdownmode
  • Indicative area: 0.018mm2

Block Diagram

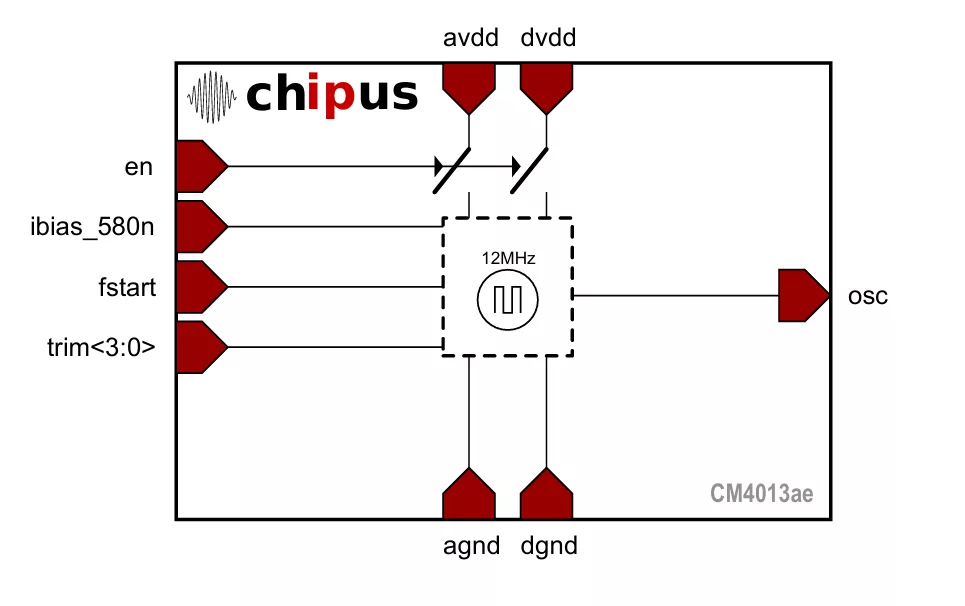

CM4013ae block diagram

Specifications

Identity

Part Number
CM4013ae
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
