12bit, 400 MSPS ADC Ultra Low Power
The ODT-ADS-12B400M-G22FDX is an ultra-low power ADC designed in a 22nm CMOS process.
Overview
The ODT-ADS-12B400M-G22FDX is an ultra-low power ADC designed in a 22nm CMOS process.
This 12-bit, 400MSPS ADC supports input signals up to 100MHz and features a differential full-scale range of 0.8Vpp and excellent static and dynamic performance.
The ADC architecture is optimized to maximize performance while minimizing power and area consumption. The ADC includes an integrated input buffer.
Key features
- Ultra high-performance low-power ADC
- Integrated input buffer
- 12-bit ADC resolution
- Sampling rate of 500MSPS
- Fully differential operation
- 0.8Vpp differential input signal range
- Functional from -40°C to 150°C
- AEC-Q100 Grade-2
- In-band SFDR of 75dBc
- SNR of 58.5dB in full Nyquist
- SNDR of 57dB
Block Diagram

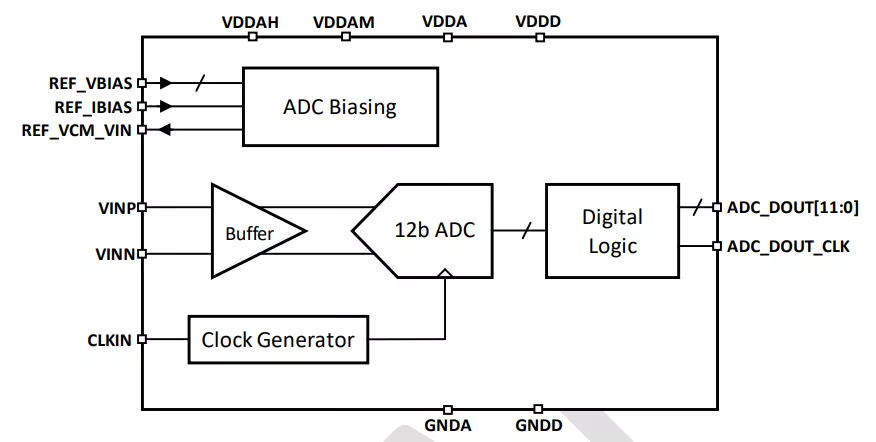

ODT-ADS-12B400M-GF22FDX block diagram
Applications
- General-purpose software-defined radio
Data acquisition systems
Cellular base station
Broadband communications
High-speed medical imaging
Wideband satellite receiver
What’s Included?
- Datasheet
- Hard Macro (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top-level connectivity
- Spectre Netlist (as needed upon request)
- Behavioral Model
- Integration and Customer Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | 22 220 nm | — |
Specifications
Identity
Part Number
ODT-ADS-12B400M-GF22FDX
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP
Analog
Resolution bits
12 Bit
Provider
HQ:
USA
