Vendor: T2M GmbH Category: ADC

10b-160MHz-ADC-(802.11 AC AFE)-IP

This ADC is a Dual Low area, Low Power 160 MHz,10 bit Pipelined Analog-to-Digital converter with internal reference.

10 Bit View all specifications

Overview

This ADC is a Dual Low area, Low Power 160 MHz,10 bit Pipelined Analog-to-Digital converter with complete internal reference.

Key features

  • Output is 10 bit Parallel
  • Conversion rate: 160 MHz max
  • Differential Input = 1.0 Vp-p
  • Low Power/Low Resolution Modes available
  • Latency = 3.5 cycles
  • Complete Internal reference/No need for any package pin or external decoupling capacitor.

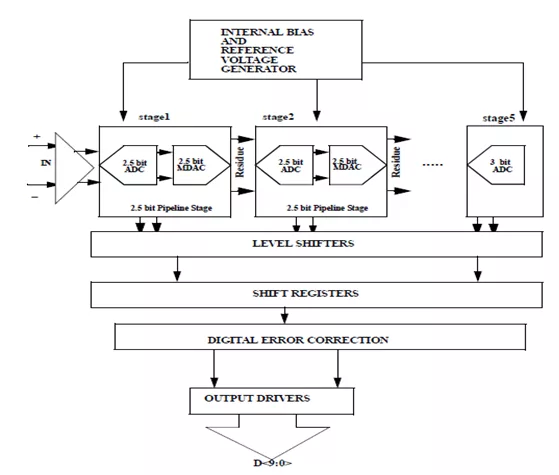

Block Diagram

10b-160MHz-ADC-(802.11 AC AFE)-IP block diagram

What’s Included?

  • Technical documents
  • Design Guide

Specifications

Identity

Part Number
10b-160MHz-ADC-(802.11 AC AFE)-IP
Vendor
T2M GmbH
Type
Silicon IP

Analog

Resolution bits
10 Bit

Provider

T2M GmbH
HQ: Germany

Frequently asked questions about ADC IP cores

What is 10b-160MHz-ADC-(802.11 AC AFE)-IP?

10b-160MHz-ADC-(802.11 AC AFE)-IP is a ADC IP core from T2M GmbH listed on Semi IP Hub.

How should engineers evaluate this ADC?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this ADC IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
