Vendor: Omni Design Technologies, Inc. Category: ADC

10-bit, 5 MSPS ADC in 12nm CMOS on GF 12nm LP+

The ADC is an ultra-low-power ADC designed in a GF 12nm LP+ process.

10 Bit GlobalFoundries 12nm LP+ View all specifications

Overview

The ADC is an ultra-low-power ADC designed in a GF 12nm LP+ process.

This 10-bit, 5MSPS ADC supports input signals up to 1 MHz and features 2V differential full-scale input range with excellent static and dynamic performance. The input front-end includes a 4:1 mux.

The ADC architecture is optimized to maximize performance while minimizing power and area consumption.

Key features

  • Ultra-low-power, high-performance ADC
  • 10-bit ADC resolution
  • Sampling rate up to 5MSPS
  • Differential input signal
  • SNR up to 55 dB
  • Selectable inputs

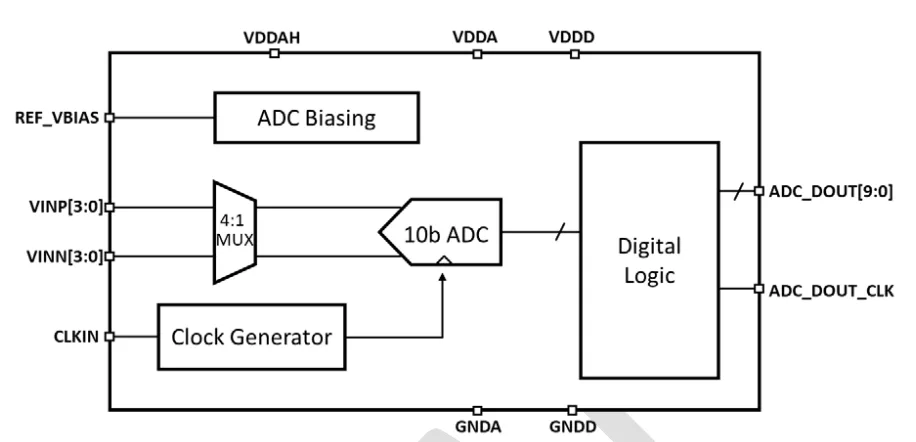

Block Diagram

ODT-ADS-10B5M-12LPPG block diagram

Applications

  • General Purpose Auxiliary ADC
  • General purpose software defined radio
  • data acquisition systems
  • communications
  • medical imaging

What’s Included?

  • Datasheet
  • Hard Macro (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model
  • Integration and Customer Support

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 12nm LP+ —

Specifications

Identity

Part Number
ODT-ADS-10B5M-12LPPG
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Analog

Resolution bits
10 Bit

Provider
