1.2 V Bandgap Voltage Reference
The WEABG18NI12SFN21M22G is a band reference voltage that provides a 1.224 V output from an 1.8 V input.
Overview
The WEABG18NI12SFN21M22G is a band reference voltage that provides a 1.224 V output from an 1.8 V input. It is specified over the –40°C to +120°C temperature range.
Key features
- Supply Voltage (typ):1.5 V to 2.0 V
- Operating Temperature Range: -40 oC to 150oC
- Ptat current : 30.1 uA @27oC
- Ptat current TC : 2.2 mA
- Untrimmed Constant Current : 24.95 uA @27oC
- Untrimmed Constant Voltage : 1.22 V @27oC
- Vbgr temp variation : 6.2 mV
- PSSR @1KHz : 65 dB
- PSSR @1MHz : 19 dB
- Current Consumption : 4.2 mA
- Area: 378um x 229um

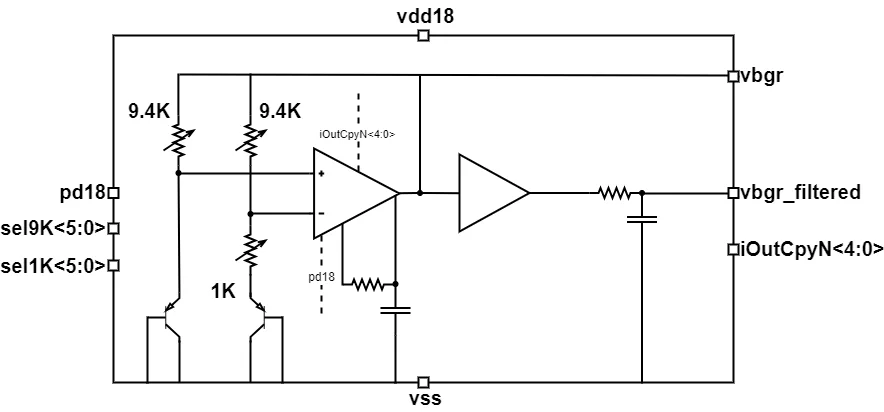

Block Diagram
WEABG18NI12SFN21M22G block diagram
Applications
- General purpose applications
What’s Included?
- GDSII, Database, SystemVerilog Models
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEABG18NI12SFN21M22G
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Greece
