Vendor: T2M GmbH Category: V-By-One

V-by-One Rx IP, Silicon Proven in SMIC 40LL

The V-by-One HS technology aims to transmit video signals at a high data rate using internal equipment connections.

SMIC 40nm LL In Production View all specifications

Overview

The V-by-One HS technology aims to transmit video signals at a high data rate using internal equipment connections. The requirements to create a transmitter and receiver are defined by the V-by-One HS Standard. This supports up to 4Gbps/lane and has available 8-lane and 16-lane PHY for Tx and Rx.

Key features

  • Wide-range data rate, up to 1Gbps, and the associated clock is DDR clock (1/2 of the data rate, up to 500MHz)
  • 16 channels total 128 bits of parallel data, each channel has a bit width of 8 bits
  • DC coupling mode
  • Multi-channel shared offset
  • Built-in terminal impedance circuit, without external components
  • Support AXI stream bus protocol and data transceiver
  • Built-in self-test mechanism, which can independently complete feature and mass production testing
  • Support link training mode
  • Support Flip-chip package form
  • ESD: HBM/MM/CDM/Latch-Up 2000V /200V/ 500V/100mA.
  • Silicon Proven in SMIC 40LL.

Block Diagram

What’s Included?

  • Datasheet
  • Integration guideline
  • GDSII or Phantom
  • GDSII Layer map table
  • CDL netlist for LVS
  • LEF Verilog behavior model
  • Liberty timing model DRC/LVS/ERC results

Files

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
SMIC 40nm LL In Production

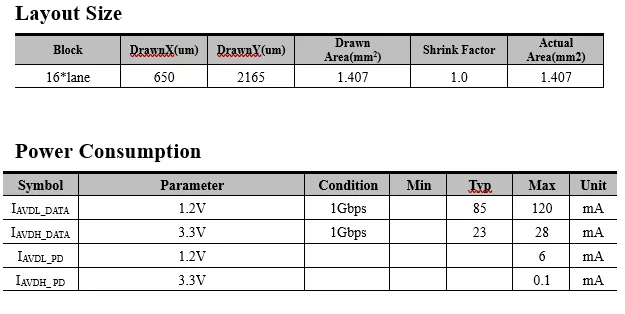

Specifications

Identity

Part Number
V-by-One Rx IP in 40LL
Vendor
T2M GmbH

Provider

T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets. T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules. With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
