Vendor: Nano Silicon Category: V-By-One

V-by-One 1.4 Receiver

Contact Provider Request Datasheet
SMIC 40nm View all specifications

Key features

  • Compliant with V-by-One 1.4 specification
  • Support for up to 4 channels, with up to 4 Gbps data rate per channel
  • CDR support to resolve skew problems between clock and data in conventional transfer systems
  • Supports up to 40-bit Deep-Color in RGB/YCbCCr/RGBW/RGB/Y format Digital Video Output with selectable edge clocking
  • Supports scrambling
  • Fully configurable Color Depth and Color Mode
  • Supports Byte Mode auto detect
  • Power Consumption:
    • Analog: 28 mA, 1.1 V + 2 mA, 1.8 volt
    • Digital: 6 mA, 1.1 V

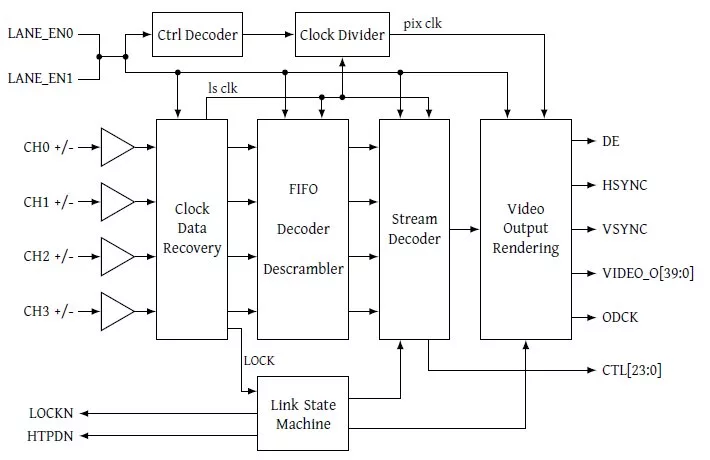

Block Diagram

VX1_RX1.4 block diagram

Applications

  • High speed data transmission of video signals based on internal connection of the equipment.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
SMIC 40nm 40nm 400 nm —

Specifications

Identity

Part Number
VX1_RX1.4
Vendor
Nano Silicon

Provider

Nano Silicon
HQ: Australia
Founded in 1999, Nano Silicon provides solutions, specializing in the fast growing area of high speed connectivity and data converters. We have resources in Brisbane (Australia), Wuxi and Chengdu (China) to facilitate design services and customer support, in addition to the availability of cost-effective Intellectual Property (IPs) for licensing. Nano Silicon's high speed connectivity products are made available as Intellectual Property (IP) licenses, designed to meet the demands for faster and more reliable data transmission. We provide "royalty-plus-fee" based technology licensing. Customers may license and integrate silicon IP from Nano Silicon, or have IP designed to meet their specific requirements. We offer mixed-signal IP licensing, particularly in high-speed connectivity with up to several gigabits of throughput capability. Our designs adhere to world-class design methodology utilizing state-of-art sign-off tools. We accept design specification(s) as design input(s), GDSII and/or packaged chip/module can be design output(s). Where necessary, we are also able to support silicon verification evaluation board(s).
