V-by-One 1.4 Transmitter

Contact Provider Request Datasheet
SMIC 40nm View all specifications

Key features

  • Compliant with V-by-One 1.4 specification
  • Support for up to 8 channels, with up to 4 Gbps data rate per channel
  • Supports up to 40-bit Deep-Color in RGB/YCbCCr/RGBW/RGB/Y format Digital Video Output with selectable edge clocking
  • Supports scrambling and 8b/10b encoding
  • Process: SMIC 40 nm LL 1P7M 1T
  • Temperature Range: -40 – 125°C
  • Power Consumption:
    • Analog: 115 mA, 3.3 V + 60 mA, 1.1 volt
    • Digital: 40 mA, 1.1 V
    • In Power Down Mode: 10 uA total

Block Diagram

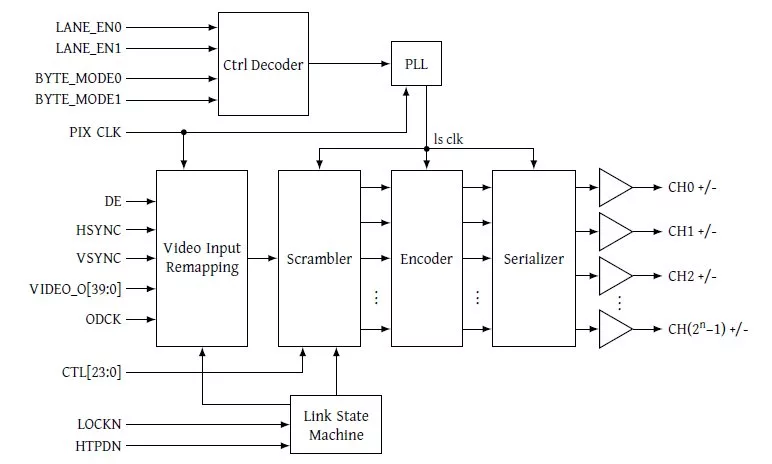

VX1_TX1.4_LVDS block diagram

Applications

  • High speed data transmission of video signals based on internal connection of the equipment.

What’s Included?

  • LEF
  • LEB
  • Verilog model

Files

Product Sheet Download
