V-by-One/LVDS Rx IP, Silicon Proven in SMIC 40LL

V-by-One® HS technology targets a high-speed data transmission of video signals based on internal connection of equipment.

Contact Provider Request Datasheet
SMIC 40nm LL In Production View all specifications

Overview

V-by-One® HS technology targets a high-speed data transmission of video signals based on internal connection of equipment. V-by-One® HS Standard defines the specifications to develop a transmitter and receiver.This Supports up to 4Gbps/lane; and Available 8-lane PHY and 16-lane PHY for Tx and Rx. A physical layer IP for LVDS Receiver. This IP consists of 20-lane (4 x 4D1C) LVDS receivers, and supports up to 1.5Gbps data rate. The input clock is 25MHz to 150MHz. The serializer is highly integrated and requires no external components. The circuit is designed in a modular fashion and desensitized to process variations. This facilitates process migration, and results in a robust design.

Key features

  • LVDS compliant Rx
  • 4 groups of 4-Data, 1-Clock channels
  • Each lane/group can be turned on/off individually
  • Supports from 168Mbps to 1.5Gbps data rate
  • Configurable analog characteristics
  • Bias voltage/current
  • DLL characteristics
  • Testability Internal analog nodes can be observed through a test pad DLL test mode Process
  • Testability At speed test by Loopback BIST
  • Internal analog nodes can be observed through a test pad
  • Supports VCO gain test, transmitter DC test, IDDQ test
  • Supply Voltage 1.8V/0.9V
  • Silicon Proven in SMIC 40nm LL.

Block Diagram

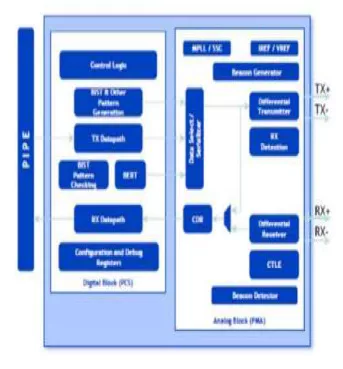

V-by-One/LVDS Rx IP in 40LL block diagram

What’s Included?

  • Datasheet
  • Integration Guideline
  • GDS or Phantom GDS
  • Layer Map Table
  • CDL Netlist for LVS
  • LEF
  • Verilog Behavior Model
  • Liberty Timing Model
  • DRC/LVS/ERC results
  • RTL for Digital section
  • Test Spec Document

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
