V-by-One/LVDS Rx IP, Silicon Proven in GF 22FDX

The V-by-One® HS technology aims to transmit video signals at a high data rate using internal equipment connections.

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX In Production View all specifications

Overview

The V-by-One® HS technology aims to transmit video signals at a high data rate using internal equipment connections. The requirements to create a transmitter and receiver are laid out in the V-by-One®HS Standard. This has an available 8-lane PHY and 16-lane PHY for Tx and Rx, and it supports up to 4Gbps/lane. an LVDS Receiver physical layer IP. This IP has 20 lanes (4 x 4D1C) of LVDS receivers and can handle 1.5Gbps of data flow. There is a 25MHz to 150MHz input clock. The serializer is completely internal and doesn't need any extra parts. The circuit is modularly constructed and desensitized to handle changes. This makes process migration easier and produces a solid design.

Key features

  • LVDS compliant Rx
  • 4 groups of 4-Data, 1-Clock channels
  • Each lane/group can be turned on/off individually
  • Supports from 168Mbps to 1.5Gbps data rate
  • Configurable analog characteristics
  • Bias voltage/current
  • DLL characteristics
  • Testability Internal analog nodes can be observed through a test pad DLL test mode Process
  • Testability At speed test by Loopback BIST
  • Internal analog nodes can be observed through a test pad
  • Supports VCO gain test, transmitter DC test, IDDQ test
  • Supply Voltage 1.8V/0.9V
  • Silicon Proven in GF 22nm FDX

Block Diagram

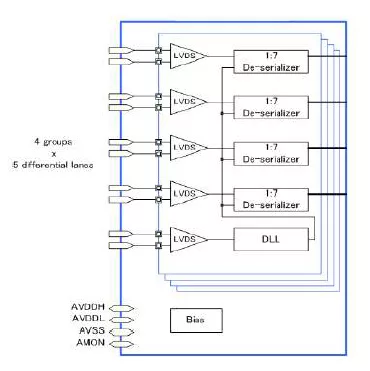

V-by-One/LVDS Rx IP in 22FDX block diagram

What’s Included?

  • Datasheet
  • Integration Guideline
  • GDS or Phantom GDS
  • Layer Map Table
  • CDL Netlist for LVS
  • LEF
  • Verilog Behavior Model
  • Liberty Timing Model
  • DRC/LVS/ERC results
  • RTL for Digital section
  • Test Spec Document
