The ODT-PVT-INT-001C-7 is an ultra-low power Temperature, Voltage and Process Monitor designed in a 7nm CMOS process.
Overview
The ODT-PVT-INT-001C-7 is an ultra-low power Temperature, Voltage and Process Monitor designed in a 7nm CMOS process. This IP operates over the entire temperature range of -40°C to 125°C.
The Temperature Monitor (TM) achieves ±4°C temperature accuracy without trim and ±1°C temperature accuracy after a single room temperature trim.
The Voltage Monitor (VM) supports four differential or single-ended inputs with a voltage range up to ±1.8V.
The Process Monitor (PM) provides unique digital code based on the process mode selected using internal register read/write operation. The different modes available inside PM are intended for Dynamic Voltage Frequency Scaling (DVFS) application or Process corner detection mode.
The IP has provision to program voltage and temperature thresholds. The INTERRUPT pin can be configured to indicate when either the voltage or temperature crosses the programmed thresholds.
A one-shot mode allows user to initiate an ondemand temperature or voltage measurement. When not operating, the entire block enters a low power standby mode.
Key features
- ± 4°C temperature accuracy without trim
- ± 1°C temperature accuracy after single room temperature trim
- Voltage monitor supports both single-ended and differential inputs, with 4:1 input mux.
- Included process monitor.
- Digital, 16-bit readout
- Over & Under Temperature and Voltage detection
- INTERRUPT signal output
- Operational from -40C to 125C
Block Diagram

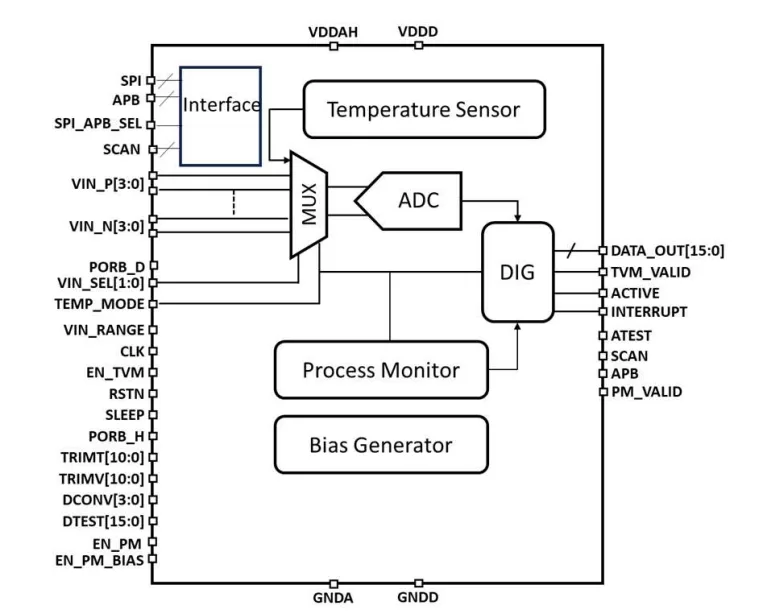

ODT-PVT-INT-001C-7 block diagram
Applications
- SoC real time temperature and voltage monitoring
- Battery management
- Remote sensors and diagnostics
- Portable medical diagnostics
- Livestock health management
- Wearable devices
- Over and Under Temperature detection
- Over and Under Voltage detection
What’s Included?
- Datasheet
- Hard Macro (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Spectre Netlist (as needed upon request)
- Behavioral Model
- Integration and Customer Support
Specifications
Identity
Part Number
ODT-PVT-INT-001C-7
Vendor
Omni Design Technologies, Inc.
Provider
Omni Design Technologies, Inc.
HQ:
USA
