Process/Voltage/Temperature Sensor (Supply voltage 3.3V/1.2V)
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations.
Overview
PVT Detector is a unique solution intended to continuously monitor IC status at several on-die locations. It is able to detect manufacturing process deviation, perform voltage and die temperature measurement.
PVT detector consists of VT module as a calculation center for voltage and temperature measurements, Process detector with process units, and voltage/temperature sensor units. VT module is able to maintain up to 15 external voltage/temperature sensor units of two types in any variations: from 1.08V to 1.32V (SU_12) and from 2.25V to 3.6V (SU_33) voltage measurement ranges.
Key features
- TSMC 55nm CMOS technology
- Temperature measurement range from -40°C to +125°C
- Voltage measurement range: 1.08V to 1.32V, 2.25V to 3.6V
- High accuracy temperature and voltage measurements
- Process detector for regular-voltage and high-voltage threshold MOS transistors
- One embedded voltage/temperature sensors
- Up to 15 remote temperature/voltage sensors

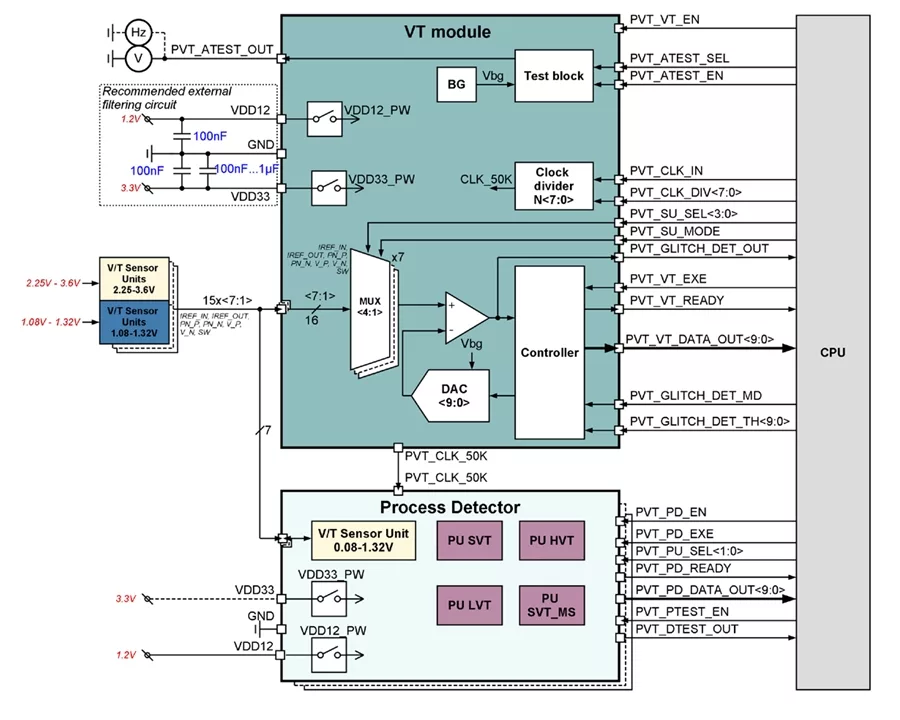

Block Diagram
055TSMC_PVT_03 block diagram
Applications
- Die temperature monitoring
- Supply voltage low battery indication
- Process deviation detection
- Pseudo static analog digitization
- System performance detection
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Behavioral model (for functional verification)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 55nm | GP | Silicon Proven |
Specifications
Identity
Part Number
055TSMC_PVT_03
Vendor
NTLab
Provider
NTLab
HQ:
Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers.
NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software.
NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets.
Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
