SD Card Verification IP

The SD Card Verification IP provides an effective & efficient way to verify the components interfacing with SD Interface of an ASIC/FPGA or SoC.

The SD Card VIP is fully compliant with Standard SD card v7.00 specifications from SD Organization. The VIP is a light weight VIP with easy plug-and-play interface so that there is not hit on the design time and simulation time.

• Compatible with all the versions V1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 6.10, 7.00
• Supports all Capacity of Memory i.e.
• Standard Capacity SD Memory Card (SDSC)
• High Capacity SD Memory Card (SDHC)
• Extended Capacity SD Memory Card (SDXC)
• Ultra Capacity SD Memory Card (SDUC)
• Supports all Voltage range:
• High Voltage SD Memory Card – Operating voltage range : 2.7-3.6V
• SD Express Memory Card – Operating voltage range VDD1: 2.7-3.6V, 1.70-1.95V optional VDD3: 1.14-1.30
• Supports Card detection for both SD mode and SPI mode
• Supports all UHS-1/2 mode
• Supports all Bus Speed Mode – Using 4 parallel data lines
• Default Speed mode : 3.3V signaling, Frequency up to 25 MHz, up to 12.5 MB/sec
• High Speed mode : 3.3V signaling, Frequency up to 50 MHz, up to 25 MB/sec
• SDR 12 : UHS-1 1.8V signaling, Frequency up to 25 MHz, up to 12.5 MB/sec
• SDR 25 : UHS-1 1.8V signaling, Frequency up to 50 MHz, up to 25 MB/sec
• SDR 50 : UHS-1 1.8V signaling, Frequency up to 100 MHz, up to 50 MB/sec
• SDR 104 : UHS-1 1.8V signaling, Frequency up to 208 MHz, up to 104 MB/sec
• DDR 50 : UHS-1 1.8V signaling, Frequency up to 50 MHz, sampled on both clock edges, up to 50 MB/sec
• Switch function command supports Bus Speed Mode, Command system, Drive strength, and future functions
• Supports Command Queue and cache for performance
• Supports Correction of memory field errors
• Supports Card removal during read operation will never harm the content
• Supports Content protection mechanism – Complies with highest security of SDMI standard
• Supports Password protection of cards (CMD42- LOCK_UNLOCK)
• Supports Write Protect feature using mechanical switch
• Supports Built-in write protection features (permanent and temporary)
• Supports Card Detection (Insertion/Removal)
• Support for Application specific commands
• Supports Comfortable erase mechanism
• Provides full control to user to enable/disable various types of messages
• Supports full timing models or bus functional models
• Supports Dynamic as well as static Error injection scenarios
• On the fly protocol checking using protocol check function, static and dynamic assertions
• Provides a comprehensive user API (callbacks) in BFMs
• Supports advanced System Verilog features like constrained random testing
• Built in Coverage analysis.
• Graphical Analyzer to show transactions for easy debugging.

• Available in native SystemVerilog (UVM/OVM/VMM) and verilog
• Unique development methodology to ensure highest levels of quality
• Availability of various Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and cover points with connectivity example for all the components
• Consistency of interface, installation, operation and documentation across the VIP
• Provide complete solution and easy integration in IP and SoC environment

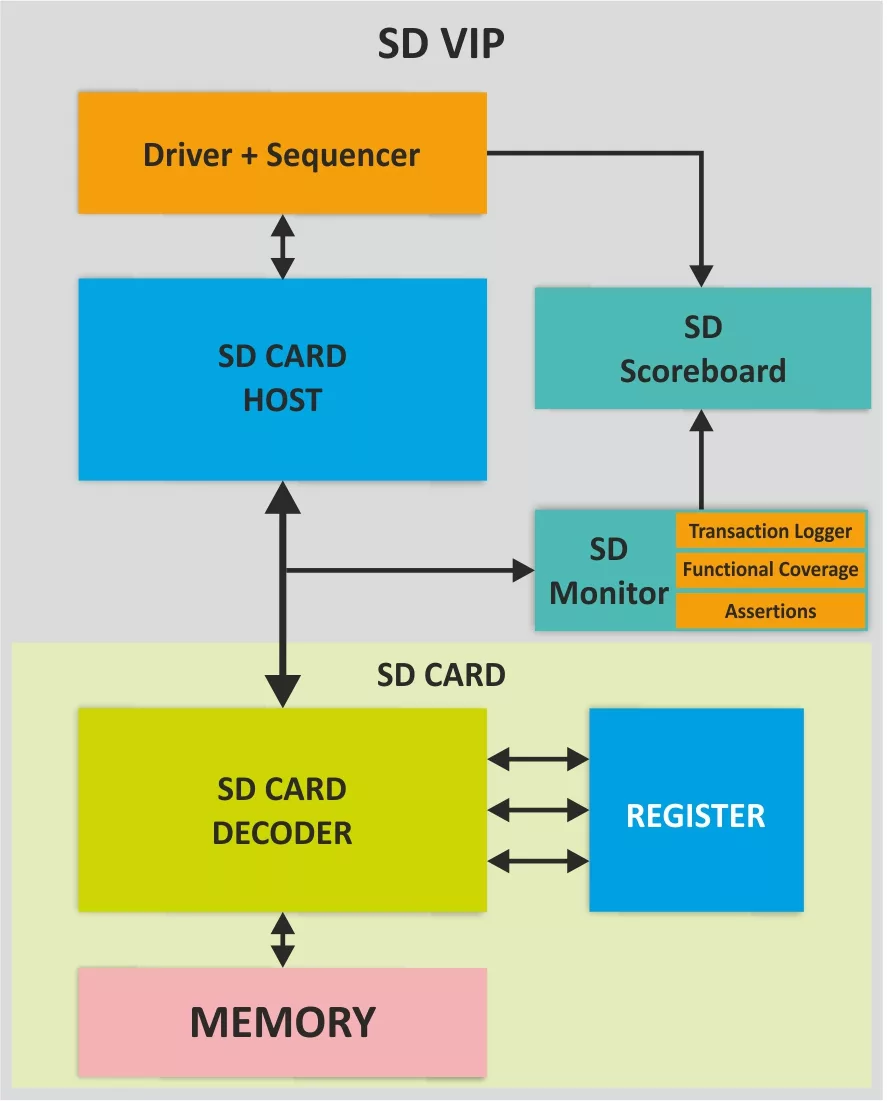

• SD Memory Card Model
• SD Monitor & Scoreboard
• SD Host Model
• Test-Bench Configurations
• Test Suite (Available in Source code)
  • Basic Protocol Tests
  • Directed & Random Tests
  • Assertions & Cover Point Tests
  • Error injection Scenarios Tests
• Integration Guide, User Manual and Release Notes
• GUI analyzer to view simulation packet flow.
• Integrated solution for SD Express with SD card, PCIe and NVMe
