SDIO 8.0 Verification IP

SDIO 1.0, 2.0,3.0,4.20,5.0,5.10,6.0,6.10,7.0,7.10 and 8.0(Draft) VIP is an advanced solution in the market for the verification of SDIO 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) implementations. It is adherent with SDIO 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) VIP and it supports SPI, SD1, SD4 and MMC8. It can generate all command types. The SDIO VIP monitor acts as powerful protocol-checker, fully compliant with SDIO 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) specification.

SDIO 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) VIP includes an extensive test suite covering most of the possible scenarios and SDIO conformance norms. SDIO 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) VIP can perform all protocol tests as testbench and moreover it allows an easy generation of a very high number of patterns and a set of specified patterns to stress the DUT.

SDIO 8.0 Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

SDIO 8.0 Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

• SDIO Specification 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) compliant.
• Supports SDIO, SD Memory, SD Combo card and Multi-media cards.
• Easily configurable to work as SDIO aware or non-SDIO aware Host controller.
• Card detection on DAT [3] line in SD mode and CS line in SPI mode.
• Re-initialization of combo card in either SDIO only mode or SD memory only mode.
• Command level features such as resetting the card, setting bus width and changing bus mode (SD to SPI).
• 1-bit, 4-bit, 8-bit SD bus mode and SPI bus mode.
• Supports read-write, read-only cards.
• All version 3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) features supported such as speed class, tuning, voltage and block size control.
• Supports capacity of Memory.
• Switch function command supports Bus speed mode,command system,drive strength & future function.
• Set block count(CMD23) command is supported.
• Supports different memory capacities given below:
• Standard Capacity SD Memory Card (SDSC) : Up to 2 GB
• High Capacity SD Memory Card (SDHC) : More than 2GB and up to 32GB
• Extended Capacity SD Memory Card (SDXC) : More than 32GB and up to 2TB
• Ultra Capacity SD Memory Card (SDUC) : More than 2TB and up to 128TB
• All UHS1 modes – SDR50/SDR104/DDR50.
• Supports e-MMC standard and high capacity standards JESD84-A441, JESD84-B45, JESD84-B50, JESD84-B51 and JESD84-B51A compliant, Supports MMC standard JESD840B42.
• Supports eMMC 5.2 draft specification.
• Low speed mode, full speed mode and high speed mode operations.
• Single byte, single block, multiple block (finite and infinite) transfers, MMC stream transfer operations.
• Direct command during data transfer (SD mode only).
• Read wait operation and allows read wait control by stopping clock and by asserting DAT [2] line low.
• Supports all features of SDIO card type-A specification for bluetooth version 1.00.
• Supports all features of SDIO card type-B specification for bluetooth version 1.00.
• Supports all features of SD specification Part1 eSD(Embedded SD) addendum version 2.10
• Supports all features of write protect feature.
• Supports application specific commands.
• Supports card ownership protection.
• Supports cache operation.
• Supports command queuing.
• Supports Card maintenance (background operations).
• Supports Low voltage 1.8V cards.
• Supports discard and Full user area logical erase.
• Asynchronous and synchronous abort mechanism.
• Supports function extension specification.
• Supports video speed class specification
• Suspend/Resume card operation.
• Lock-unlock and erase operation card features.
• SD 1-bit , SPI mode interrupt and SD 4-bit mode card interrupts.
• Clock disable and interrupt wake up card features.
• Tracking of the transmit and receive counters.
• Detects and reports the following errors.
• Out of range error
• Address misalign error
• CRC error
• Switch error
• Illegal command error
• Block length error
• Lock-unlock failed error
• Erase sequence error
• Direction bit error
• Stuff bit error
• Erase param error
• Parameter error
• Reserved bit error
• Invalid voltage error
• Function number error
• CSD/CID overwrite error
• WP violation error
• Protocol Checker fully compliant with SDIO Specification 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) compliant.
• Functional coverage for complete SDIO Specification 1.0/2.0/3.0/4.20/5.0/5.10/6.0/6.10/7.0/7.10/8.0(Draft) compliant.
• Supports constraints randomization.
• Callbacks in host, slave and monitor for user processing of data.
• Complete testsuite to verify each and every feature of SDIO standard.

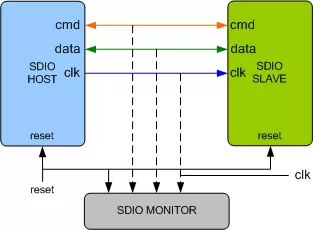

• Configurable as agent (frame generator) or monitor.
• Supports Bus-accurate timing.
• Status counters for various events on bus.
• Monitors, detects and notifies the testbench of significant events such as transactions, warnings, timing and protocol violations

• Faster testbench development and more complete verification of SDIO designs.
• Easy to use command interface simplifies testbench control and configuration of slave and host.
• Simplifies results analysis.
• Runs in every major simulation environment.

• Complete regression suite containing all the SDIO testcases.
• Examples showing how to connect various components, and usage of Host, Slave and Monitor.
• Detailed documentation of all class, task and function's used in verification env.
• Documentation contains User's Guide and Release notes.
