Ultra‐Low‐Power Process/Voltage/Temperature Monitor on TSMC 7nm FFC
The ODT-PVT-ULP-001C-7T is an ultra-low power temperature, voltage and process monitor designed in a 7nm CMOS process.
Overview
The ODT-PVT-ULP-001C-7T is an ultra-low power temperature, voltage and process monitor designed in a 7nm CMOS process. This IP operates over the entire temperature range of -40°C to 150°C.
The temperature monitor achieves ±4C temperature accuracy without trim and ±1C temperature accuracy after a single room temperature trim. The voltage monitor supports four differential or singleended inputs with a voltage range up to ±1.5V.
A one shot mode allows user to initiate an ondemand temperature or voltage measurement. When not operating, the entire block enters a low power standby mode.
The included process monitor provides information on process variation of core P, N as well as I/O P, N MOS devices in an easily readable digital format.
Key features
- TSMC 6/7nm FFC
- ± 4C temperature accuracy without trim
- ± 1C temperature accuracy after single room temperature trim
- 0.011C temperature resolution
- Voltage monitor supports both single-ended and differential inputs, with 4:1 input mux
- Included process monitor
- Digital, 16-bit readout
- Functional to 150°C

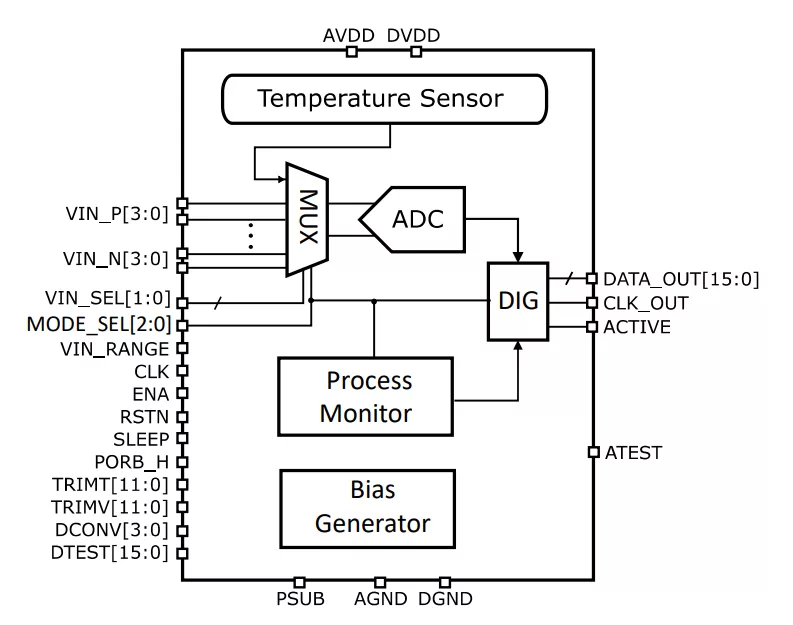

Block Diagram
ODT-PVT-ULP-001C-7T block diagram
Benefits
- High Performance Low Power, Low Area
Applications
- SoC real time temperature monitoring
- Battery management
- Remote sensors and diagnostics
- Portable medical diagnostics
- Livestock health management
- Wearable devices
- Under and over temperature
What’s Included?
- Datasheet
- Hard Macro (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Spectre Netlist (as needed upon request)
- Behavioral Model
- Integration and Customer Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 7nm | N7+ | — |
